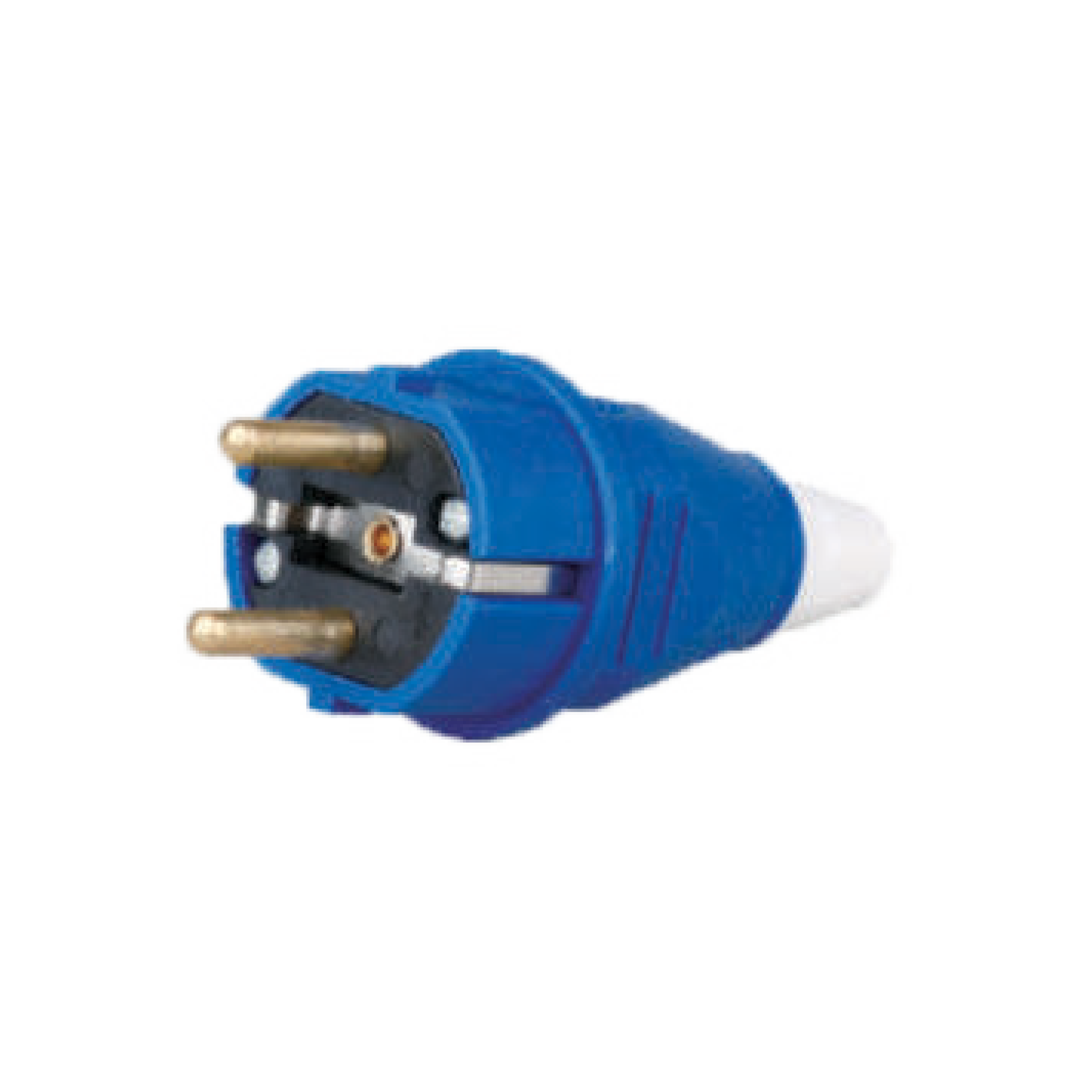

INDUSTRIAL PLUG

Application Plug
Code KS-012
Normal current 16A
Normal voltage 220 - 250 V
No. poles 2P+E
Protection degree IP44
a 40
b 96
Cable nominal cross section area 1 - 2.5 mm
Size (mm) / Type [1 KS - 012
a 40
b 96
Cable nominal cross section area 1 - 2.5 mm [2]2

INDUSTRIAL PLUG

Application Plug Plug
Code KS-012 KS-023
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220 - 250 V~ 220 - 250 V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 012 KS - 023
a 59 75
b 51 64
c 122 136
6 8
Cable nominal cross section area 1-2.5 mm2 2.5-6mm2

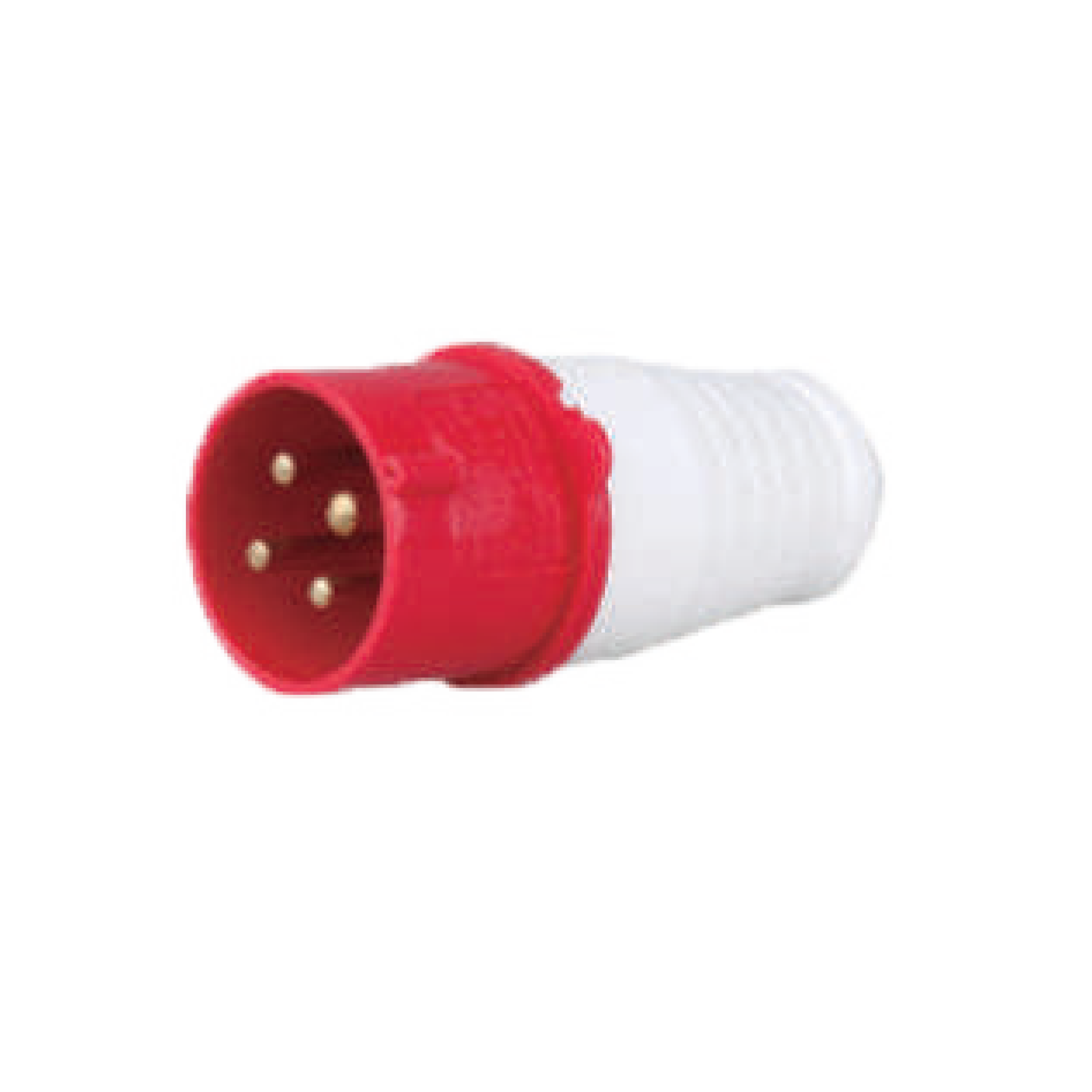

INDUSTRIAL PLUG

Application Plug Plug
Code KS-014 KS-024
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+E 3P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 014 KS - 024
a 65 75
b 55 64
c 122 136
6 8
Cable nominal cross section area 1-2.5 mm2 2.5-6mm2

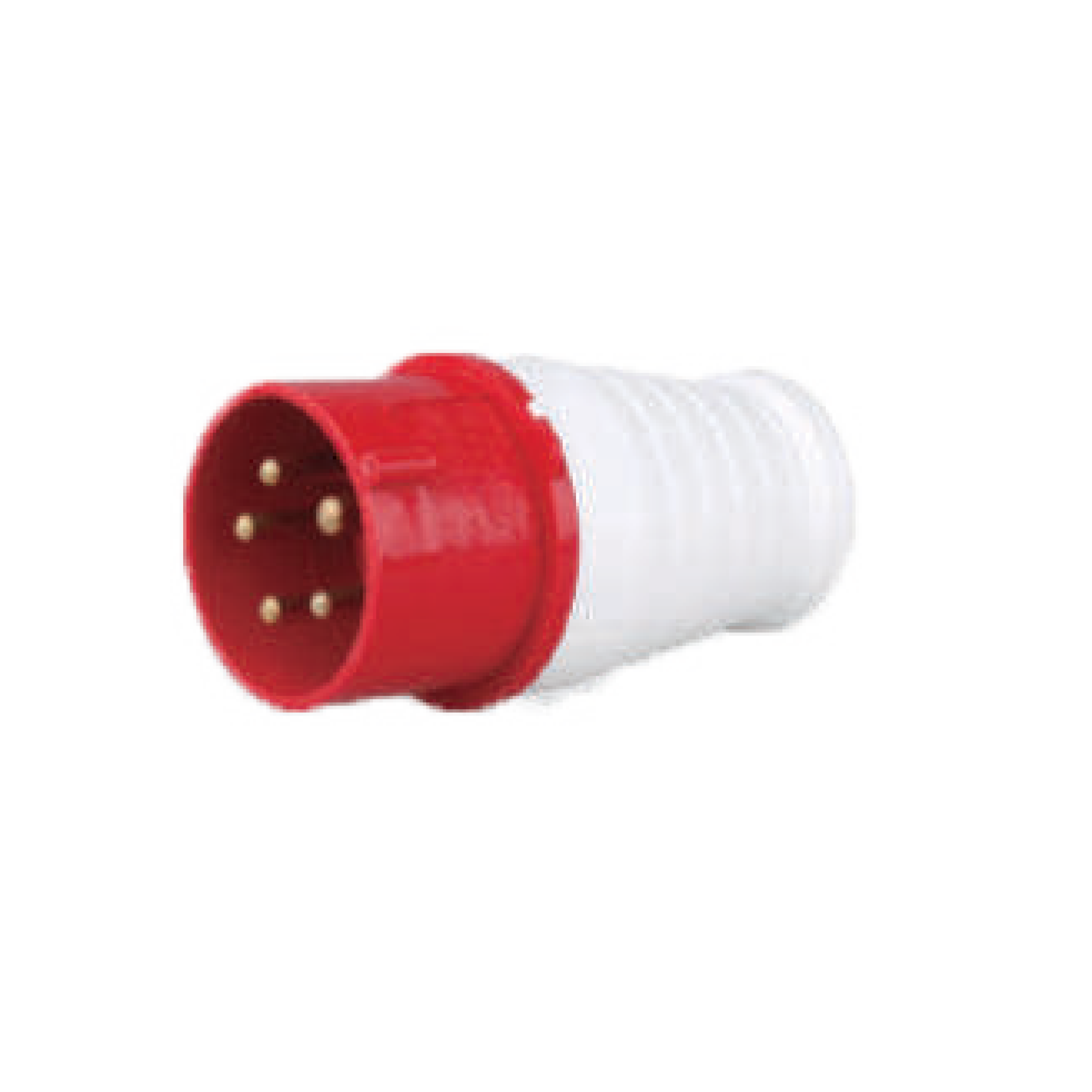

INDUSTRIAL PLUG

Application Plug Plug
Code KS-015 KS-025
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - 015
a 72
b 64
c 130
8
Cable nominal cross section area 1-2.5 mm2

INDUSTRIAL PLUG

Application Plug Plug

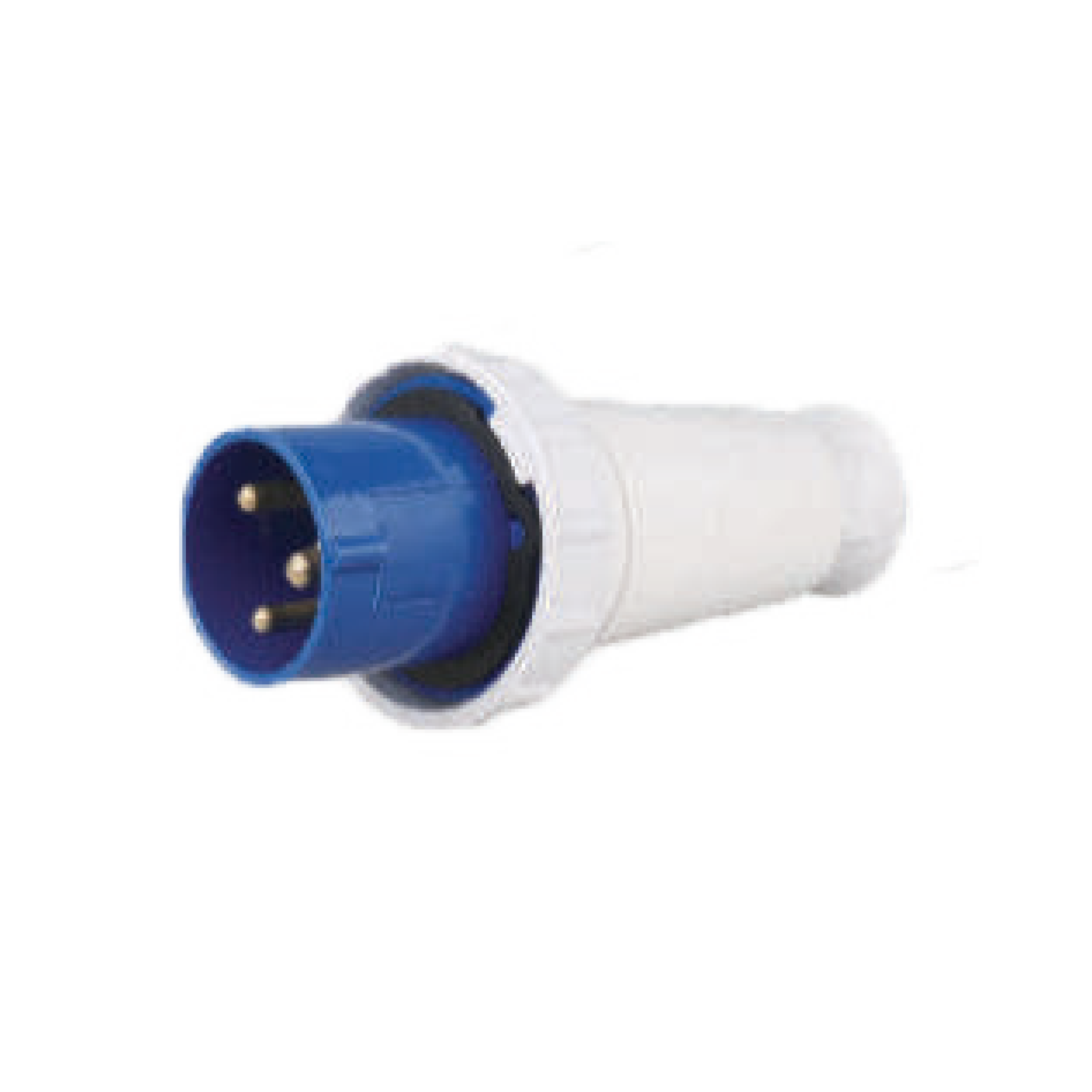

Code KS-033 KS-043
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 033 KS - 043
a 108
b 108
c 230
16
Cable nominal cross section area 6-16mm2

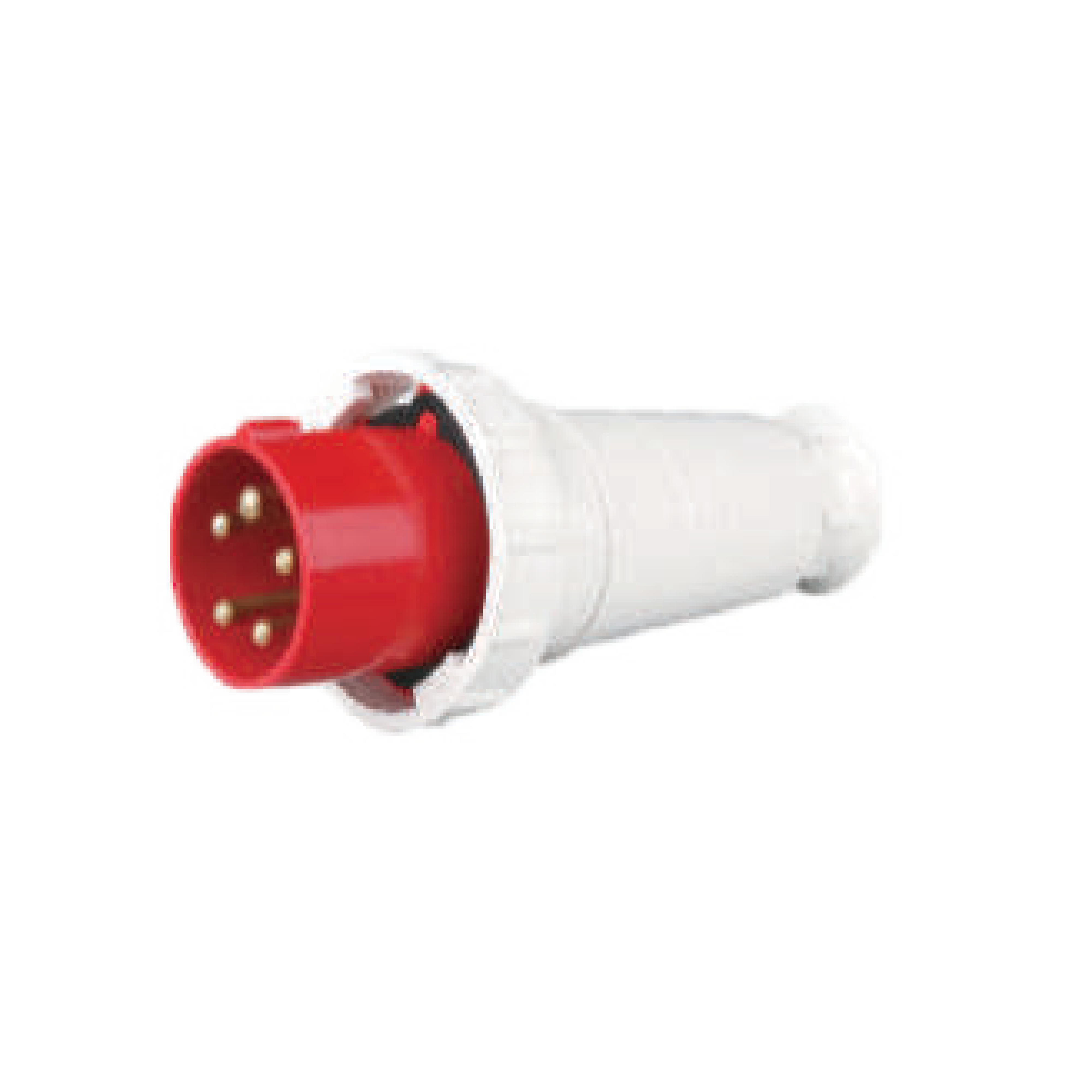

INDUSTRIAL PLUG

Application Plug Plug
Code KS-035 KS-045
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS - 035 KS - 045
a 108
b 108
c 230
16
Cable nominal cross section area 6-16mm2

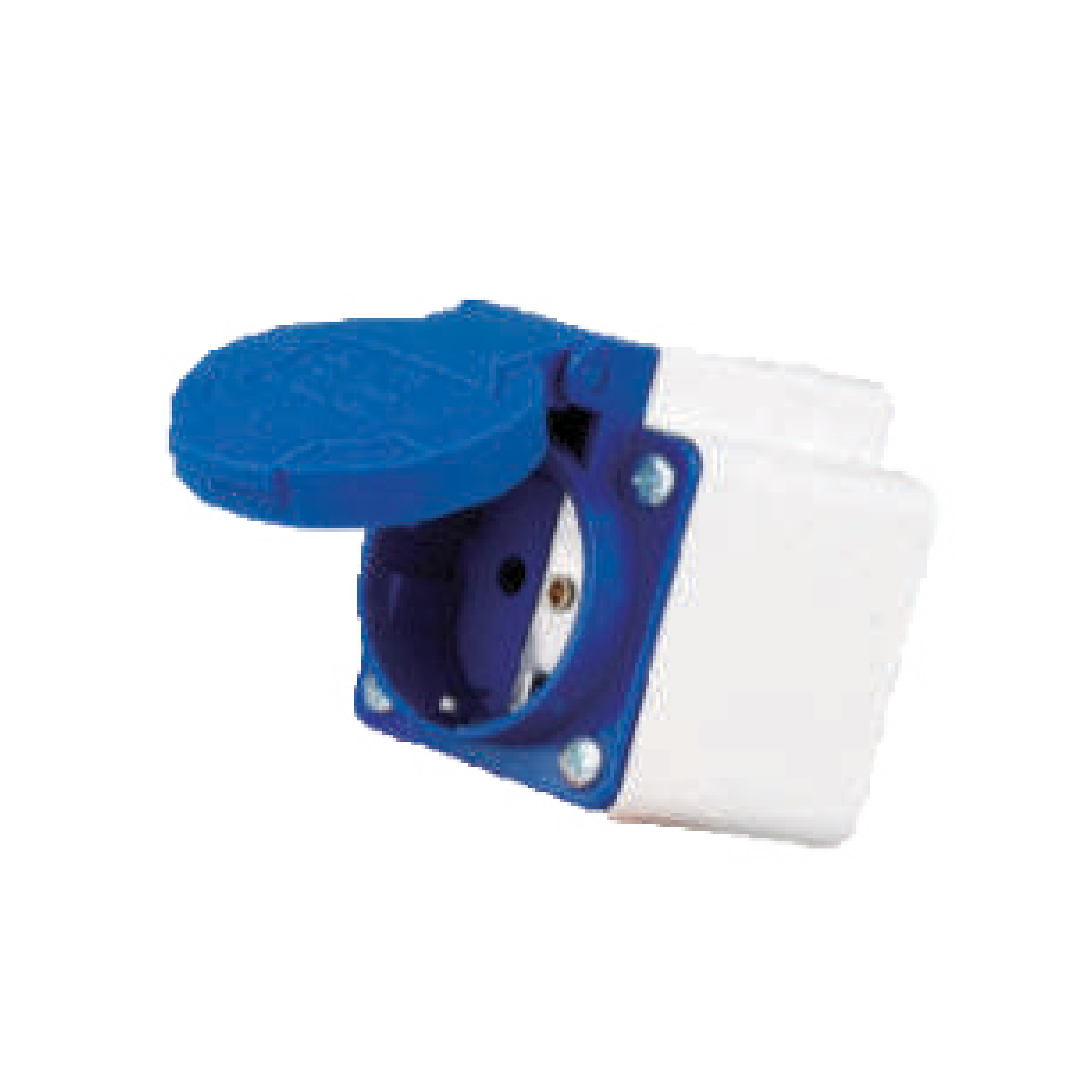

INDUSTRIAL WALL SOCKET

Application Socket
Code KS - 112
Normal current 16A
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS - 112
a 70
b 53
c 67
Cable nominal cross section area 1-2.5mm2

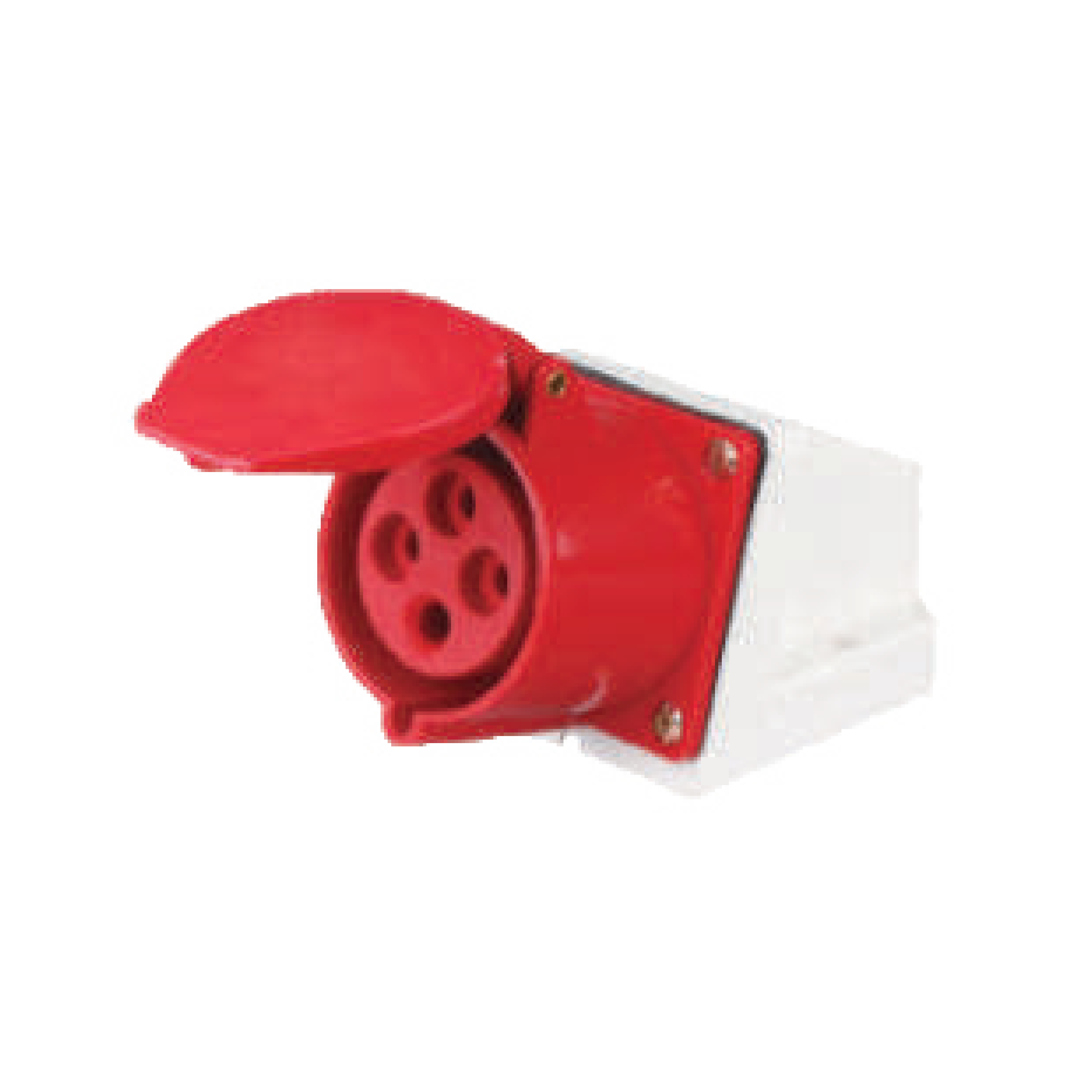

INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-113 KS-123
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 113 KS - 123
a 90 100
b 71 71
c 135 151
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

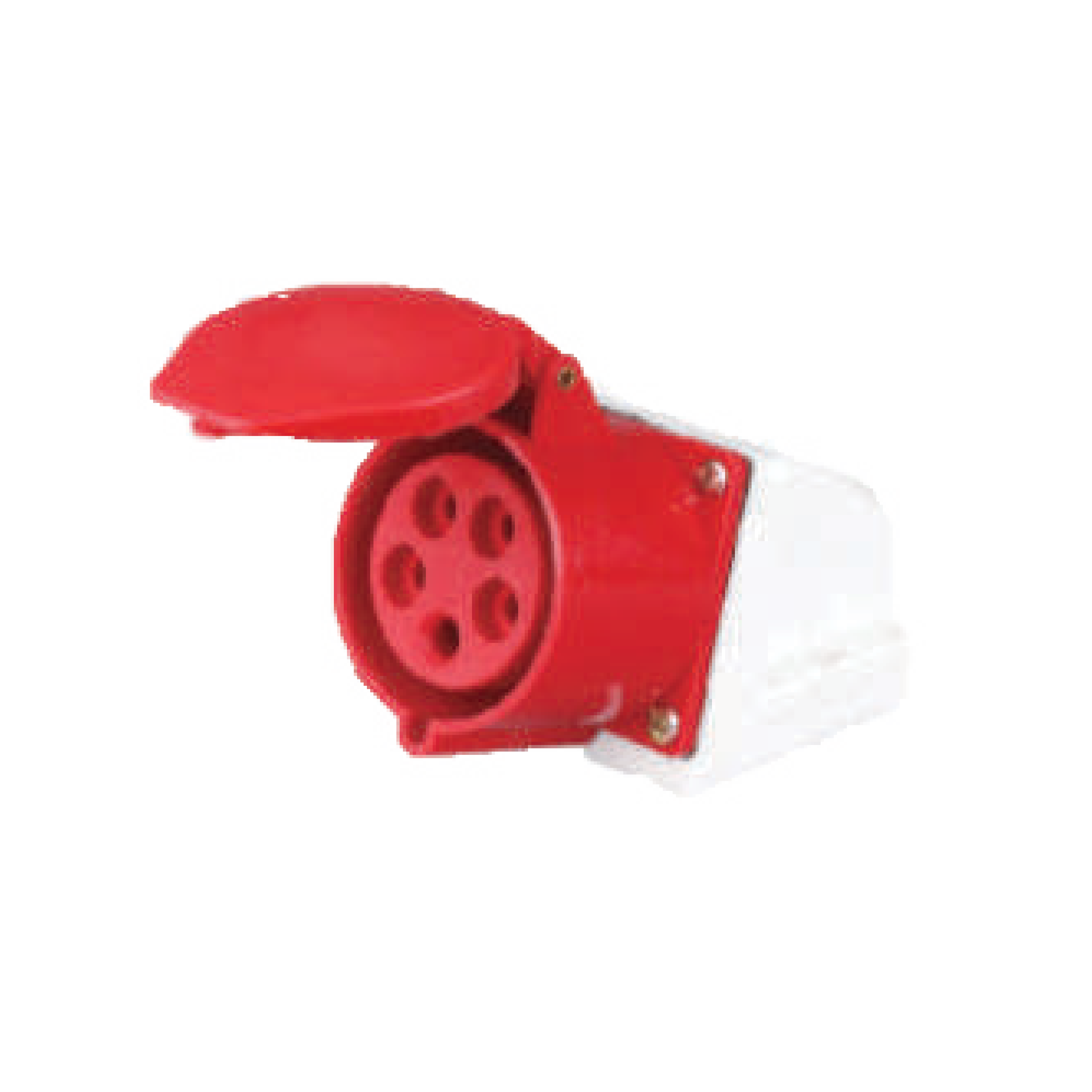

INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-114 KS-124
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+E 3P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 114 KS - 124
a 92 102
b 71 71
c 140 151
16
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

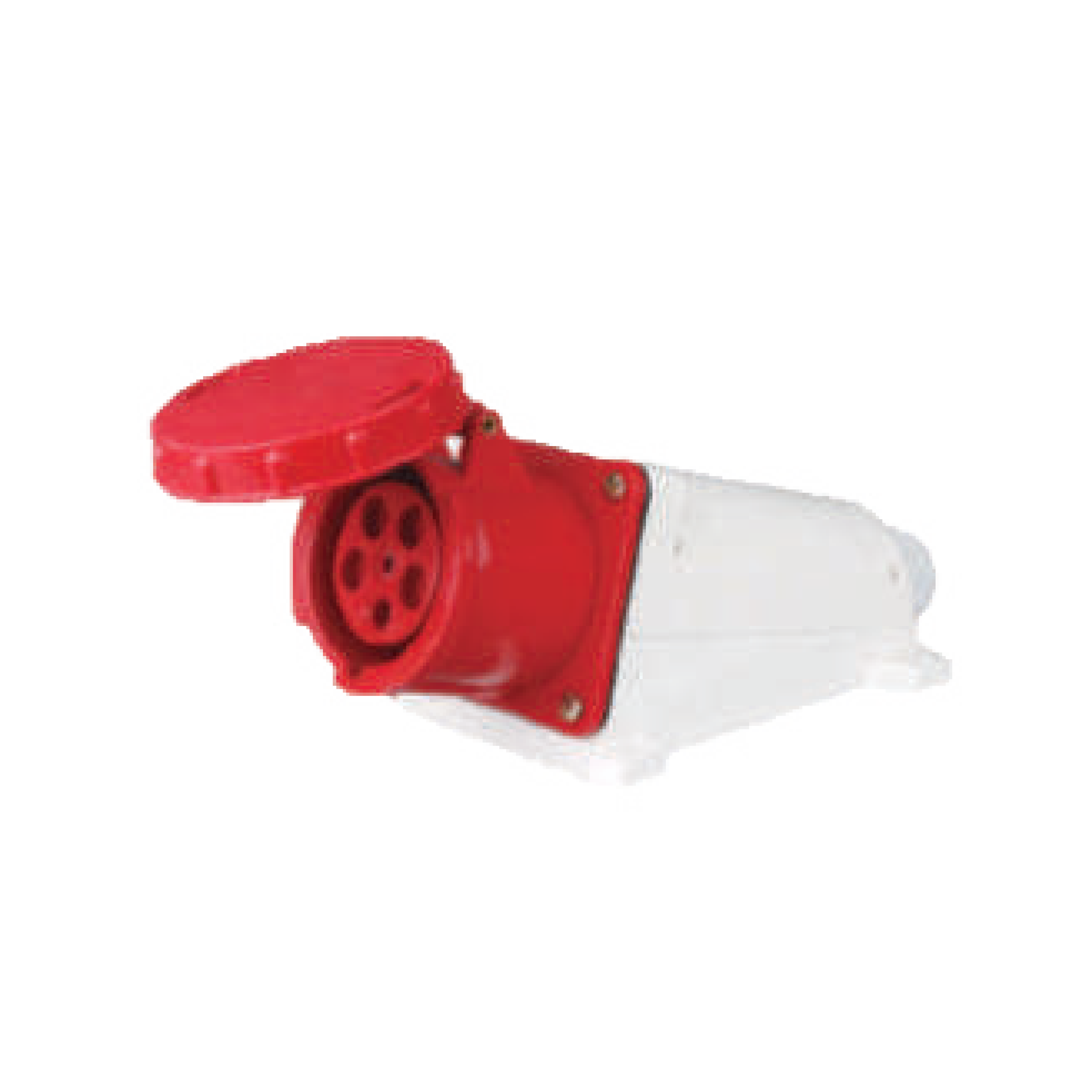

INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-115 KS-125
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - 115 KS - 125
a 100 109
b 71 71
c 131 152
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

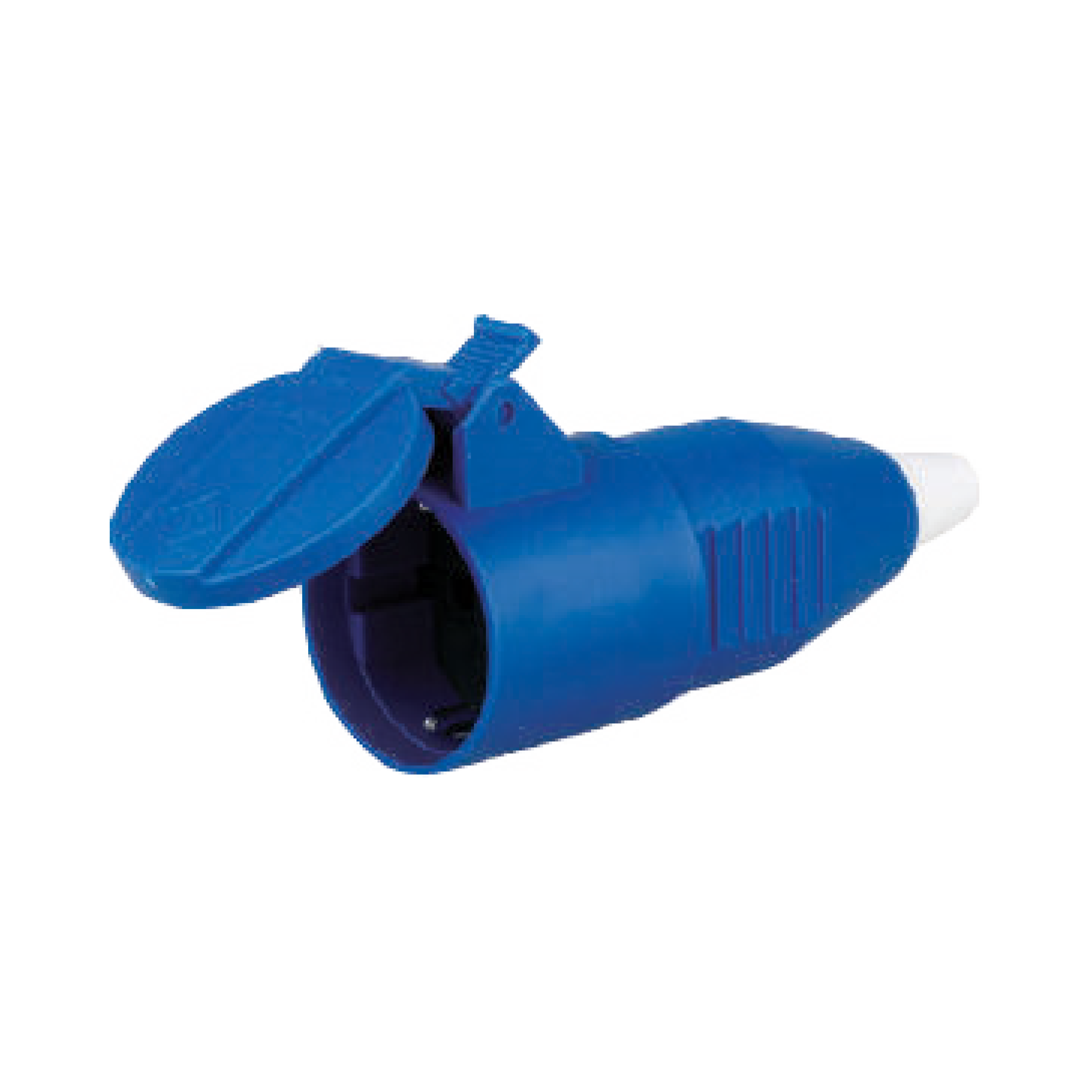

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler
Code KS - 212
Normal current 16A
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS - 212
a 72
b 48
c 123
Cable nominal cross section area 1-2.5mm2

INDUSTRIAL WALL SOCKET

Application Coupler Coupler

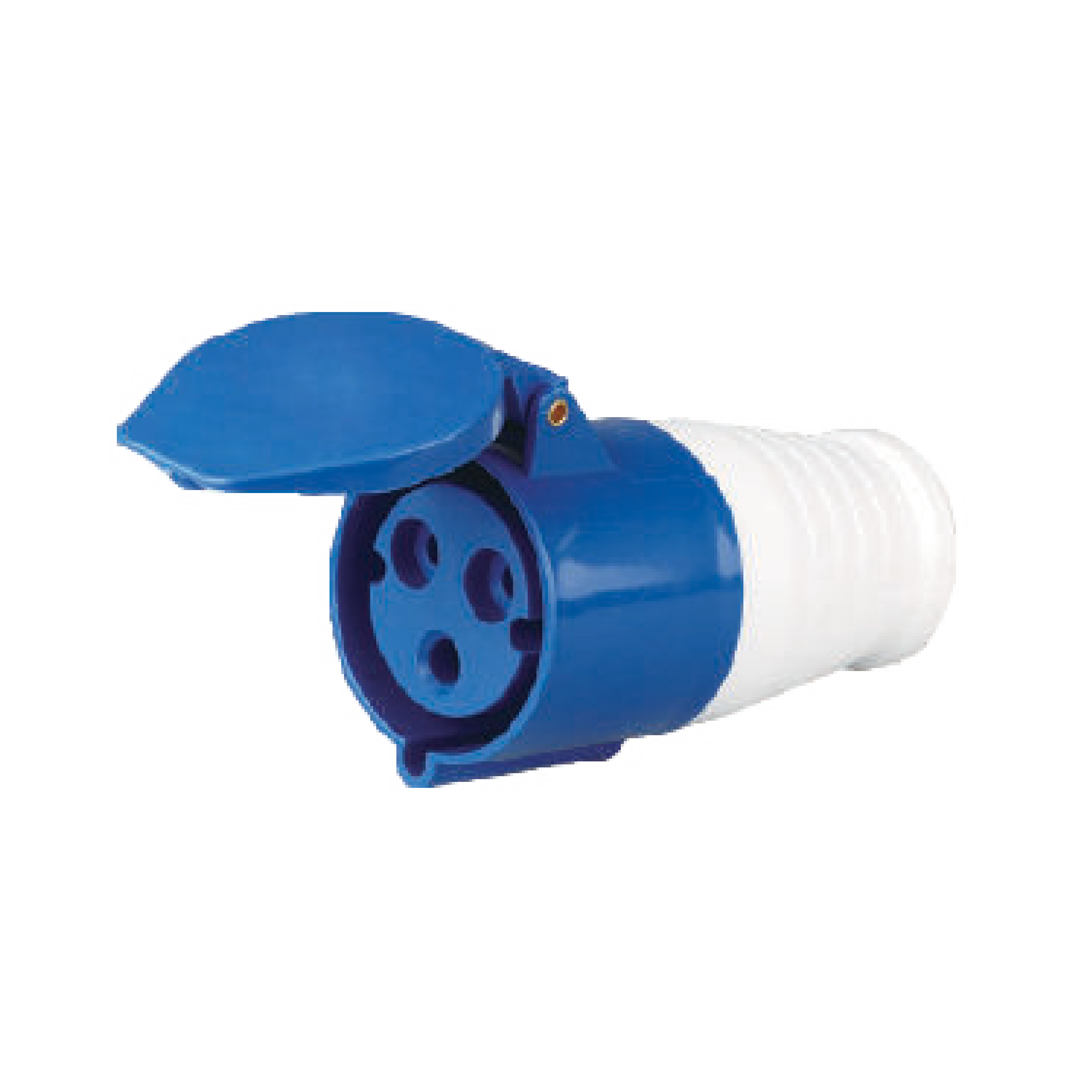

Code KS-213 KS-223
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 213 KS - KS - 223
a 72 92
b 51 64
c 132 146
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

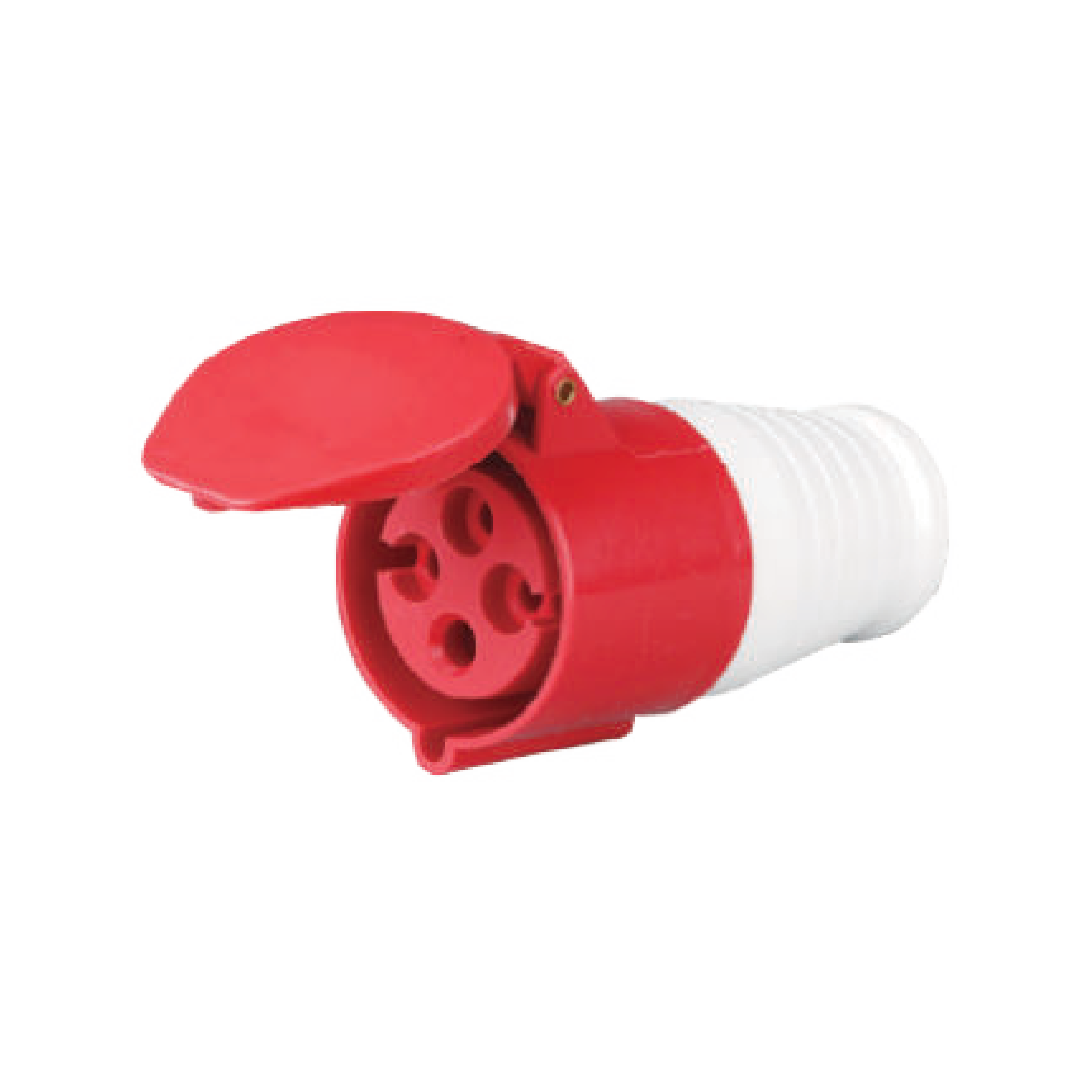

INDUSTRIAL WALL SOCKET

Application Coupler Coupler
Code KS-214 KS-224
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+ 3P+
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 214 KS - KS - 224
a 78 92
b 55 64
c 132 146
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

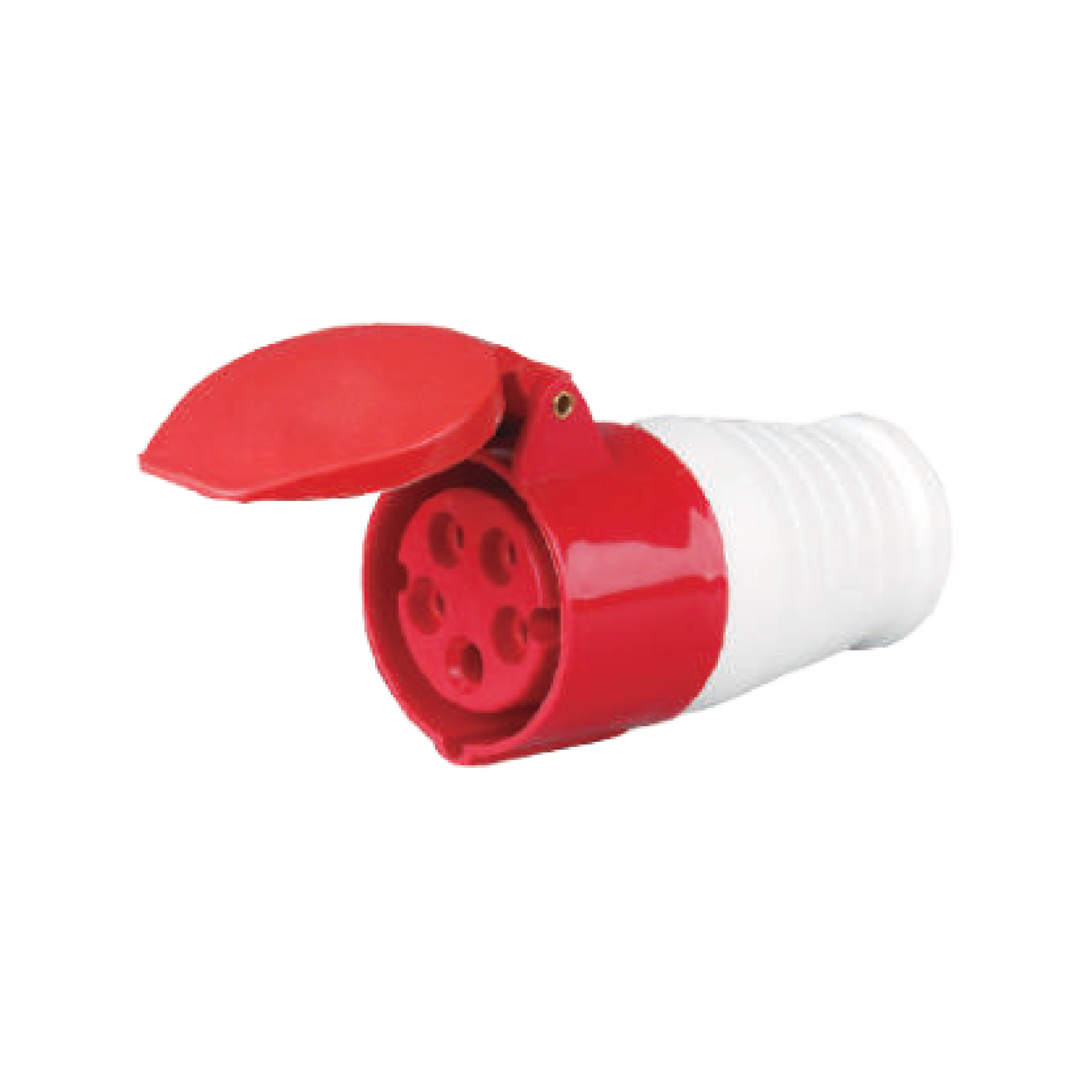

INDUSTRIAL WALL SOCKET

Application Coupler Coupler
Code KS-215 KS-225
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V240-415V 220-380V240-415V
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 215 KS - KS - 225
a 92 101
b 63 70
c 139 154
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

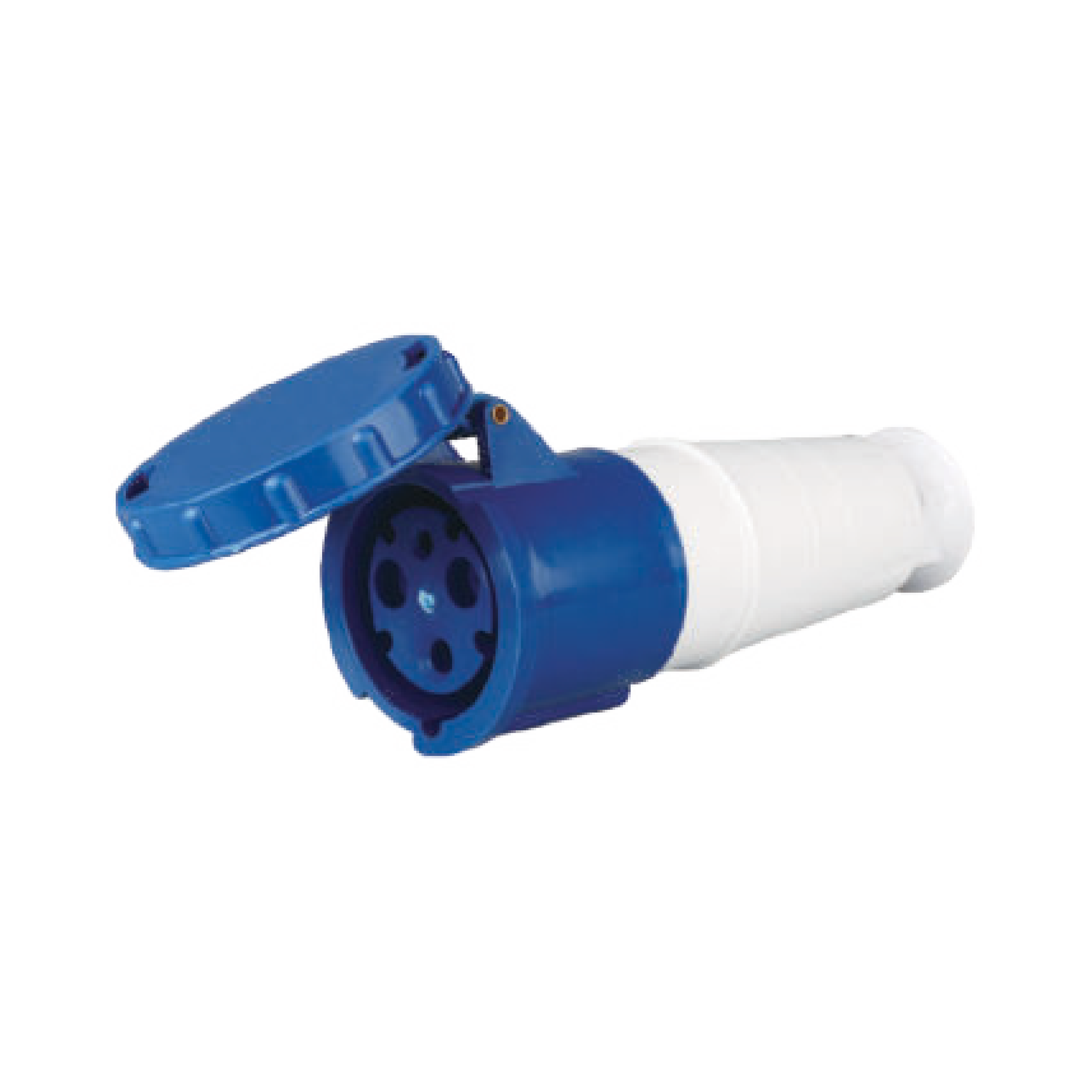

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler Coupler
Code KS - 233 KS - 243
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 233/243
a 116
b 108
c 245
Cable nominal cross section area 6-16mm2

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler Coupler

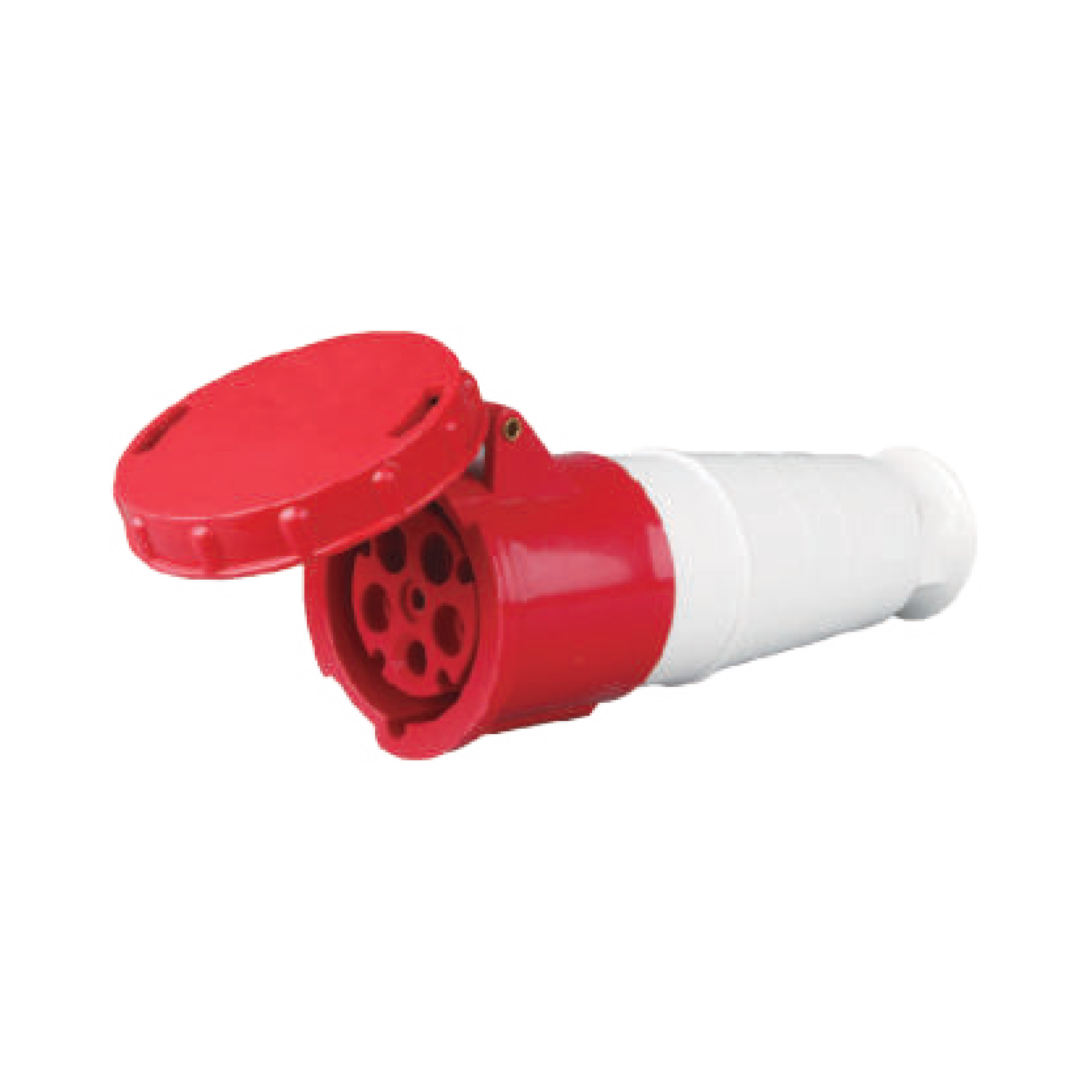

Code KS - 235 KS - 245
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+ 3P+N+
Protection degree IP67 IP67
Size (mm) / Type KS - 235/245
a 116
b 108
c 245
Cable nominal cross section area 6-16mm2

INDUSTRIAL PLUG IP 67

Application Plug Plug
Code KS - 0132 KS - 0232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V ~ 220-250V ~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 0132 KS - 0232
a 75.5 99
b 47 63
c 7-15 10-20
d 139 175
e 112 130
Cable nominal cross section area 1- 2.5mm2 2.5- 6mm2

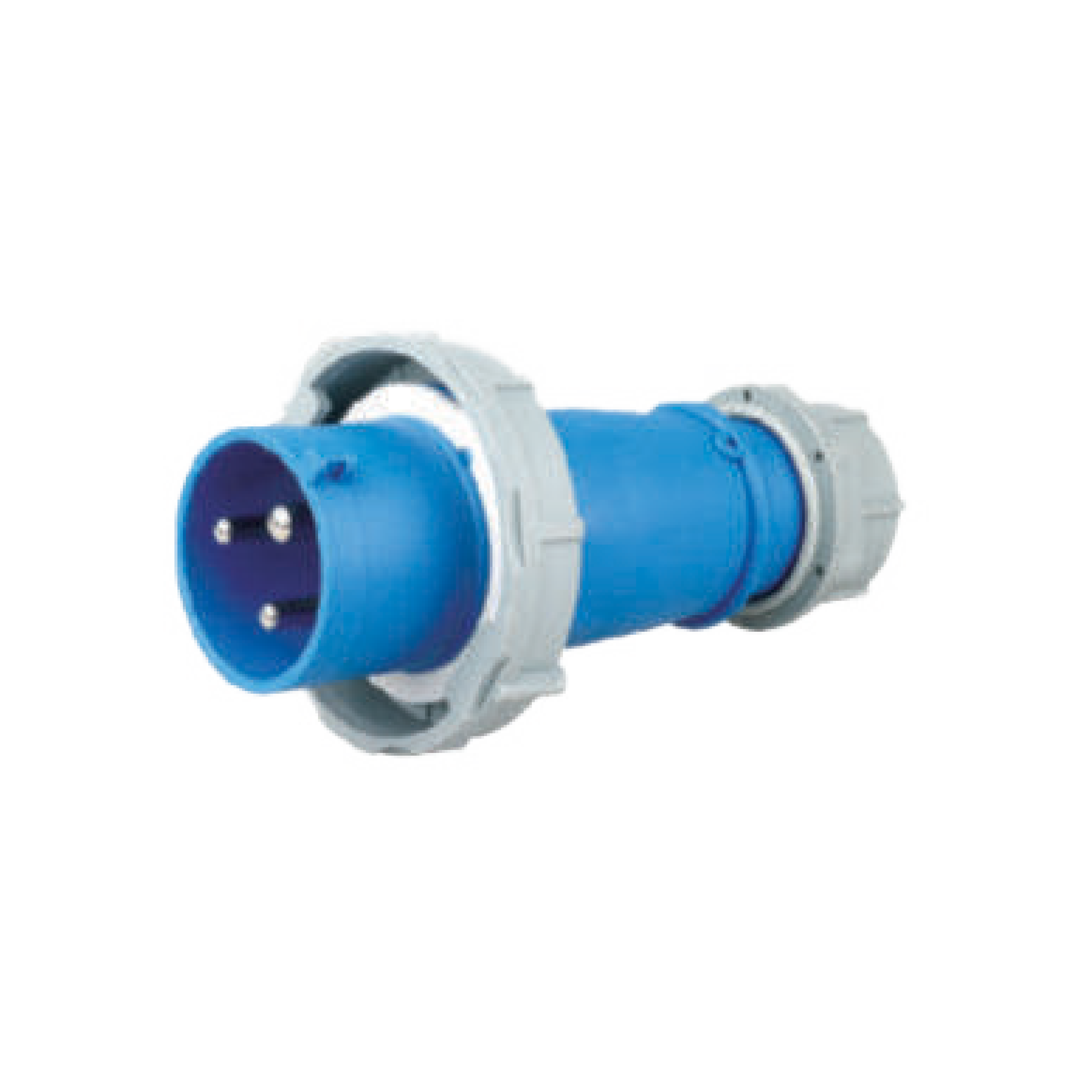

INDUSTRIAL PLUG IP 67

Application Plug Plug
Code KS - 0152 KS - 0252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V ~ /240-415V ~ 220-380V ~ /240-415V ~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS - 0152 KS - 0252
a 92 107
b 60 70
c 8-16 12-22
d 139 170
e 95 124
Cable nominal cross section area 1- 2.5mm2 2.5- 6mm2

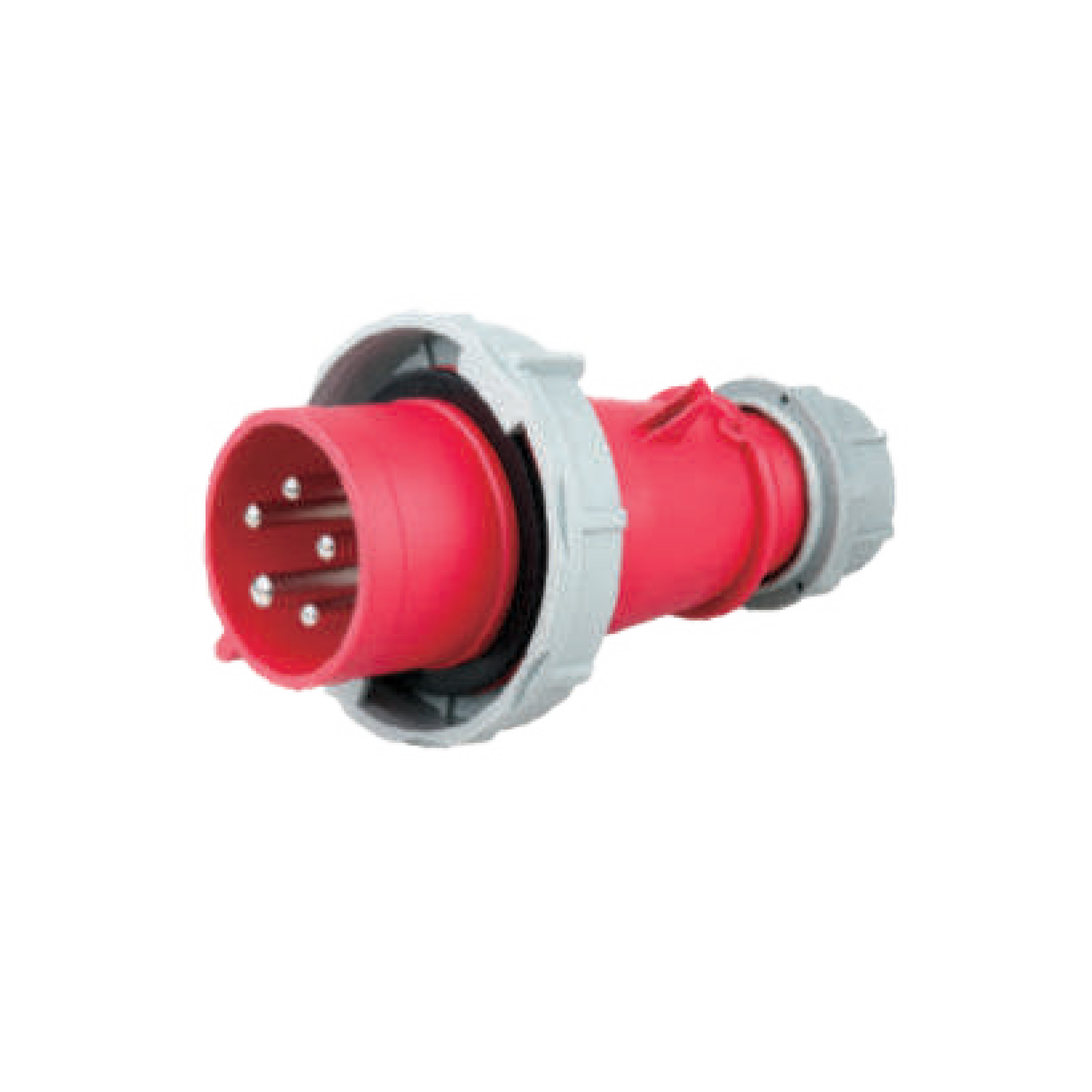

INDUSTRIAL PLUG IP 67

Application Plug
Code KS - 0352
Normal current 63A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS - 0352
a 116
b 75
c 37
d 251
e 187
Cable nominal cross section area 6-16mm2

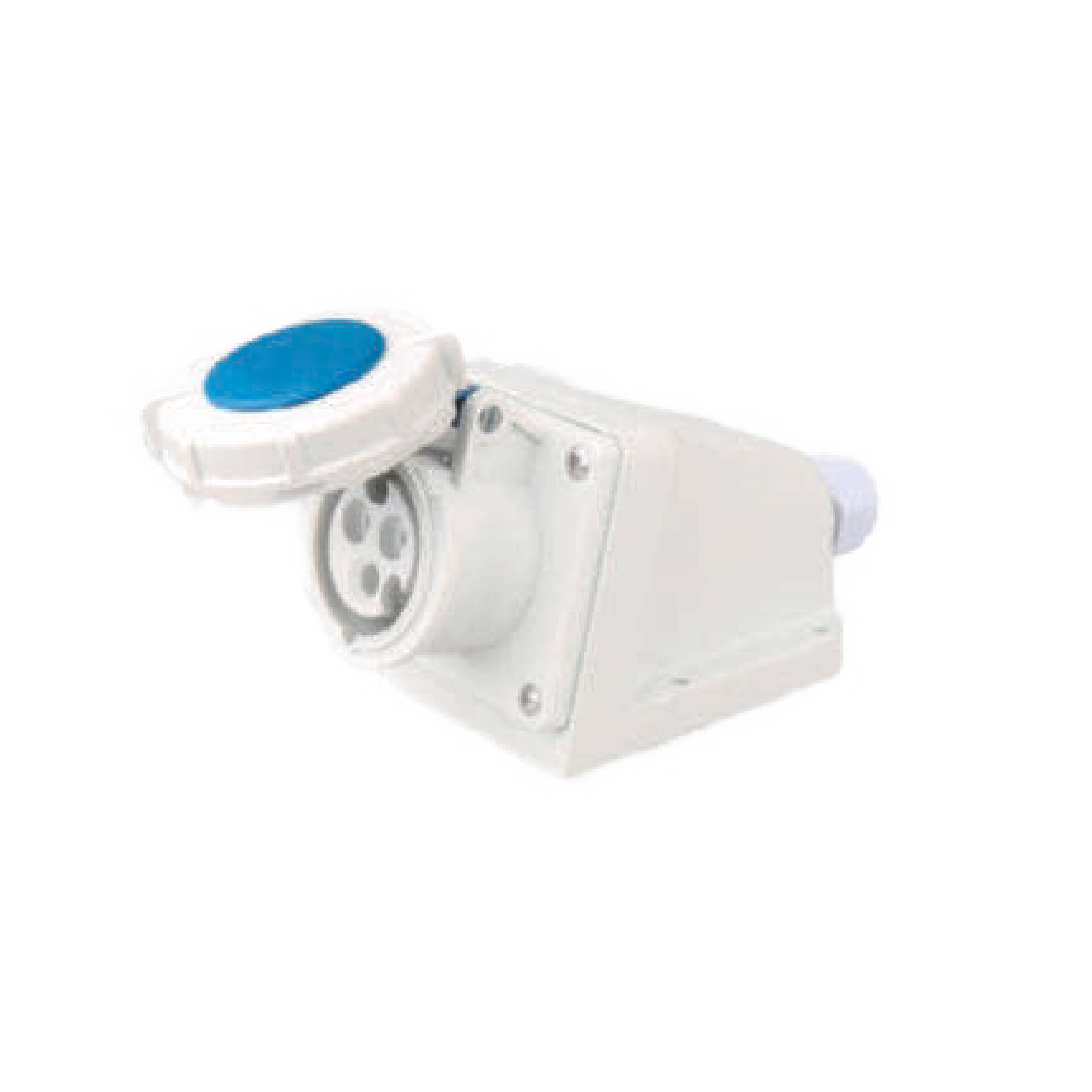

INDUSTRIAL WALL SOCKET IP 67

Application Socket Socket
Code KS-1132 KS-1232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS-1132 KS-1232
a 95 105
b 75 75
c 193 203
Cable nominal cross section area 1-2.5mm 2.5-6mm

INDUSTRIAL WALL SOCKET IP 67

Application Socket Socket

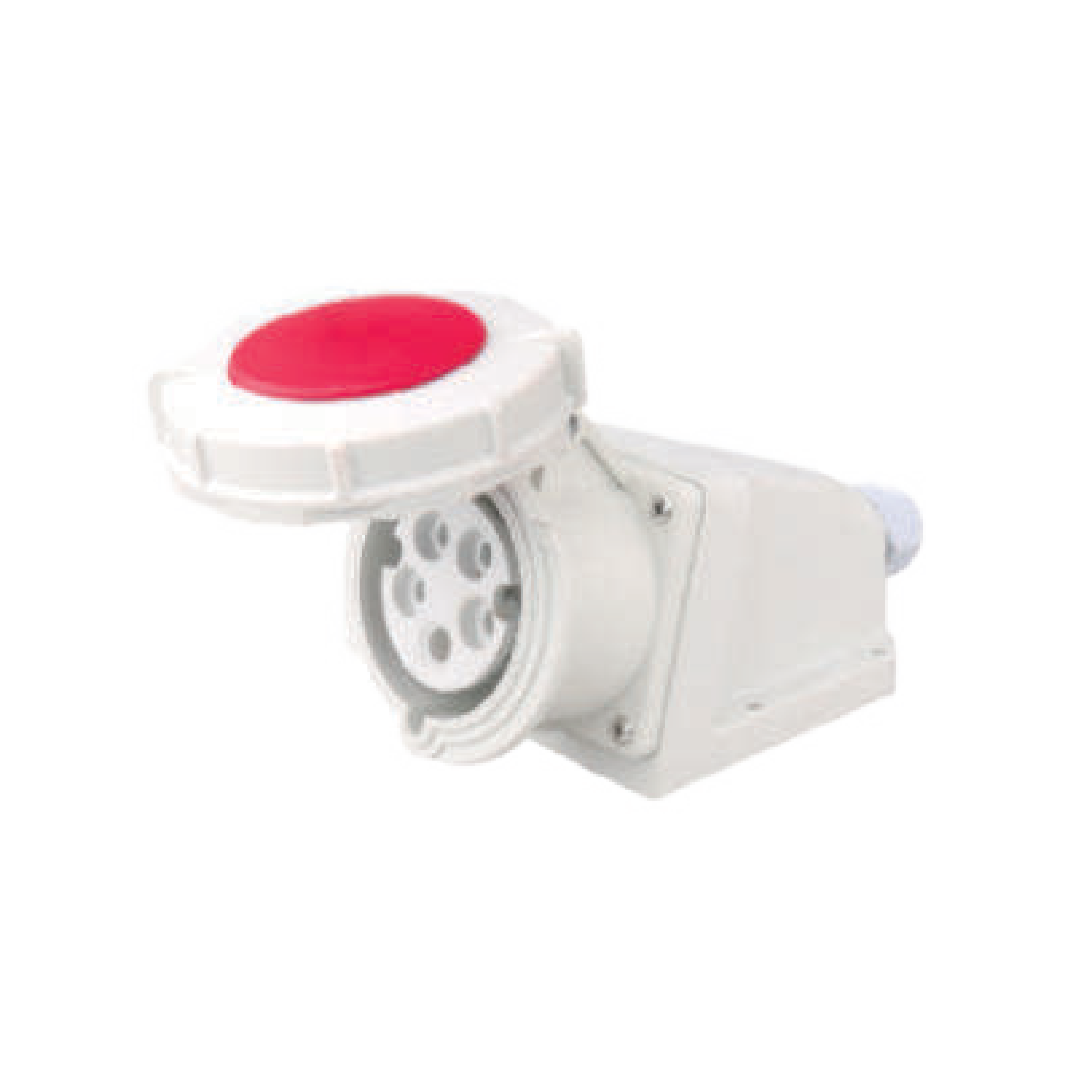

Code KS-1152 KS-1252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS-1152 KS-1252
a 100 100
b 75 75
c 185 200
Cable nominal cross section area 1-2.5mm 2.5-6mm

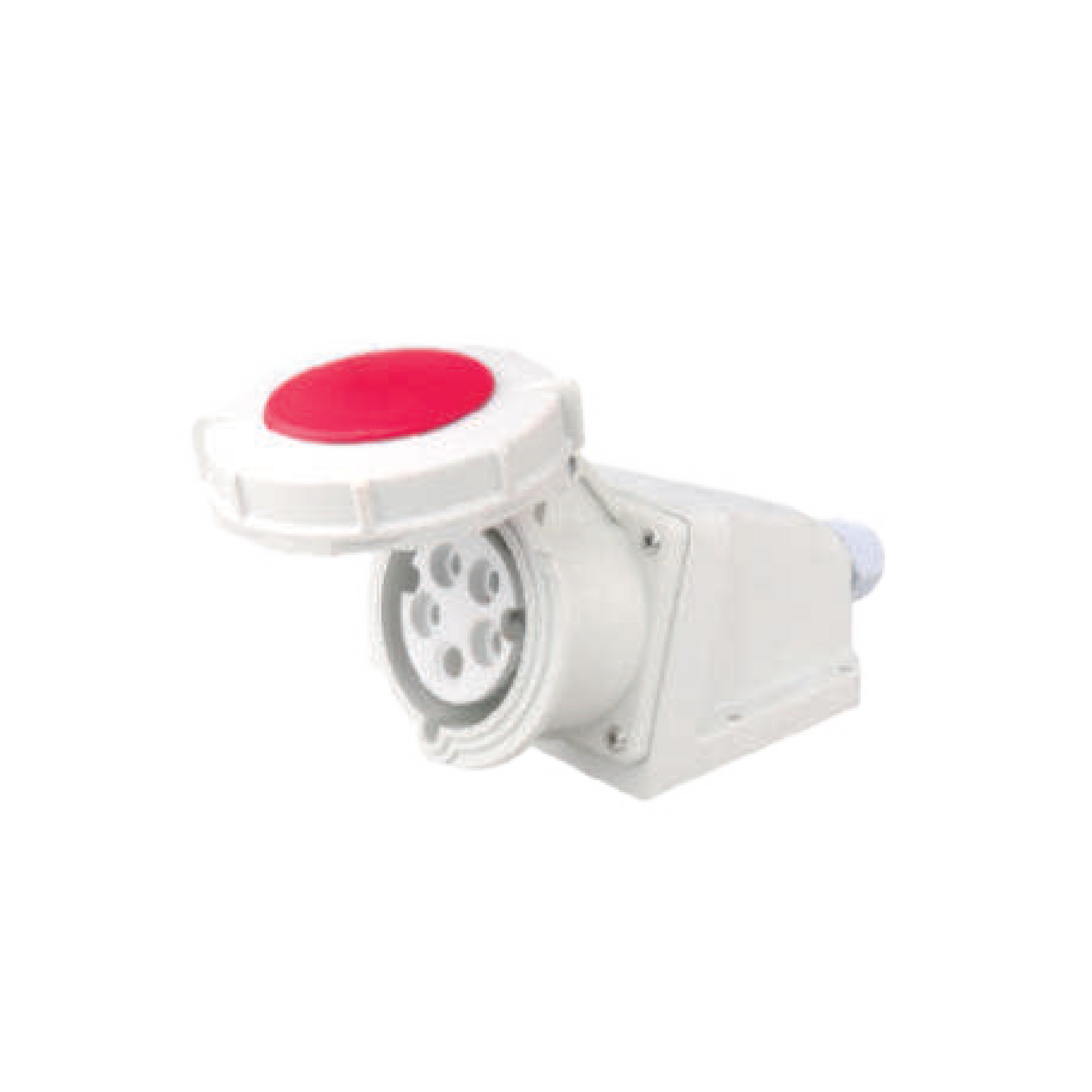

INDUSTRIAL WALL SOCKET IP 67

Application Socket
Code KS-1352
Normal current 63A
Earth Contact Position 6h
Normal voltage
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS-1352
a 130
b 105
c 275
Cable nominal cross section area 10-16mm

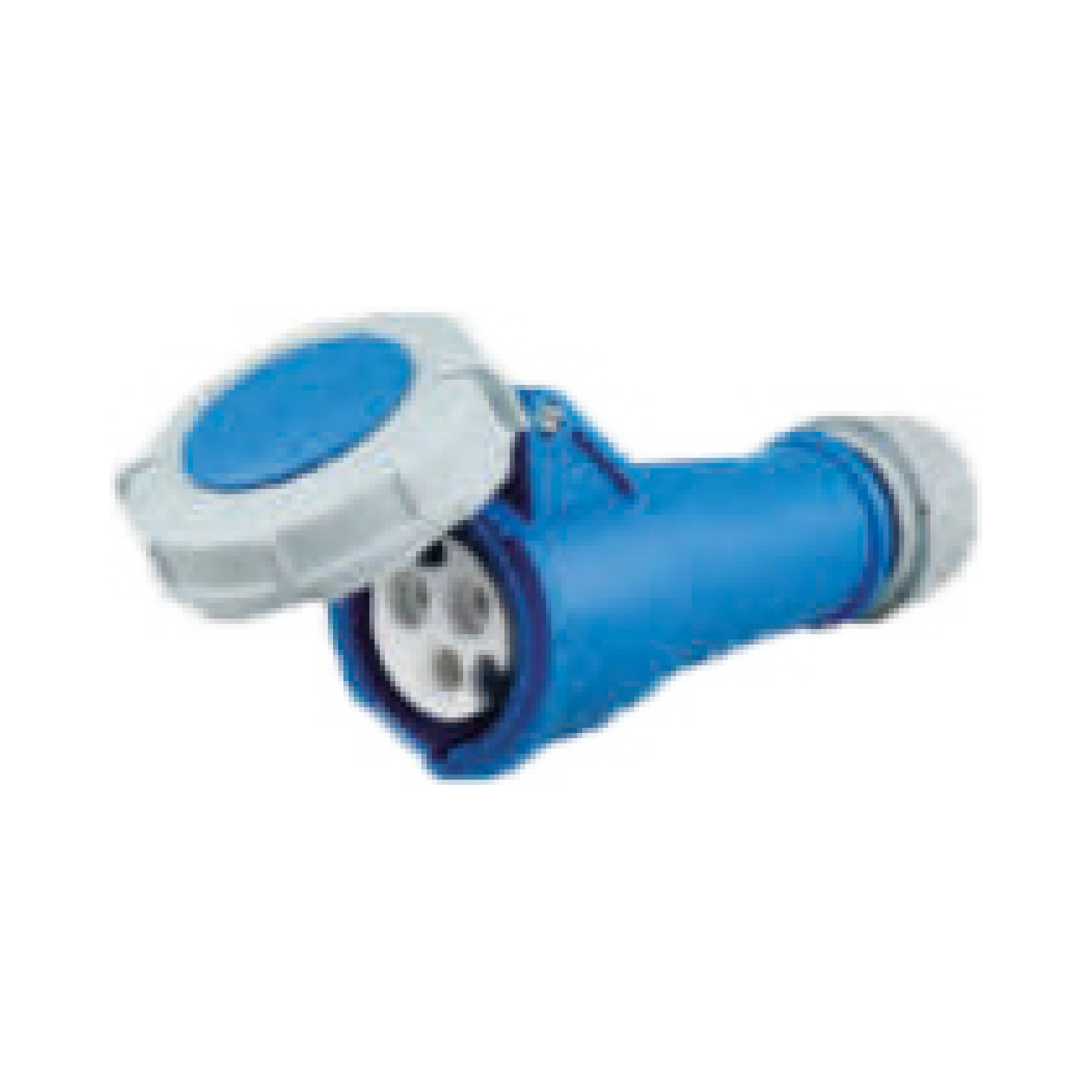

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler Coupler
Code KS-2132 KS-2232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS-2132 KS-2232
a 79 102
b 77 102
c 152 205
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler Coupler

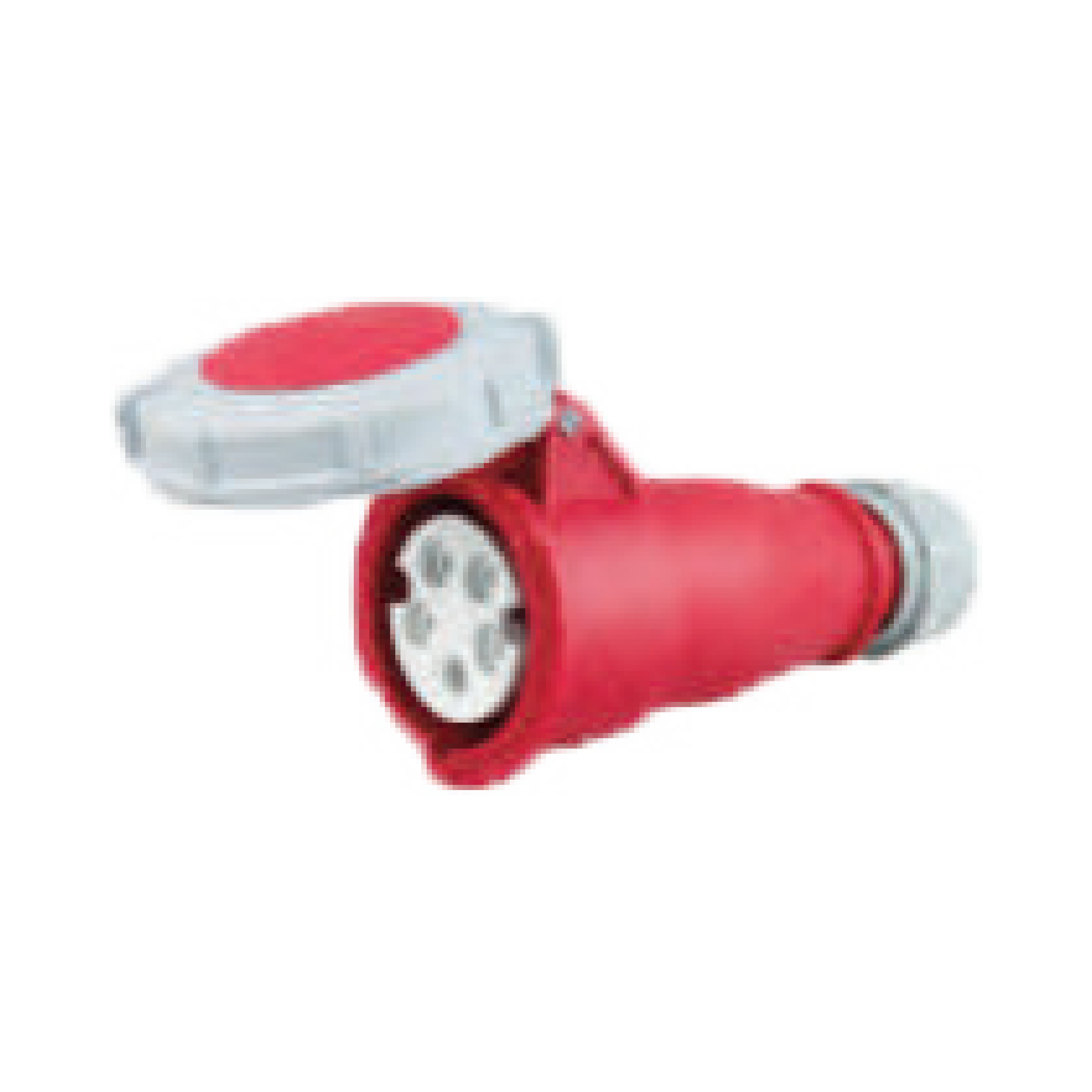

Code KS-2152 KS-2252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V ~ /240-415V ~ 220-380V ~ /240-415V ~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS-2152 KS-2252
a 97 109
b 90 103
c 160 210
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

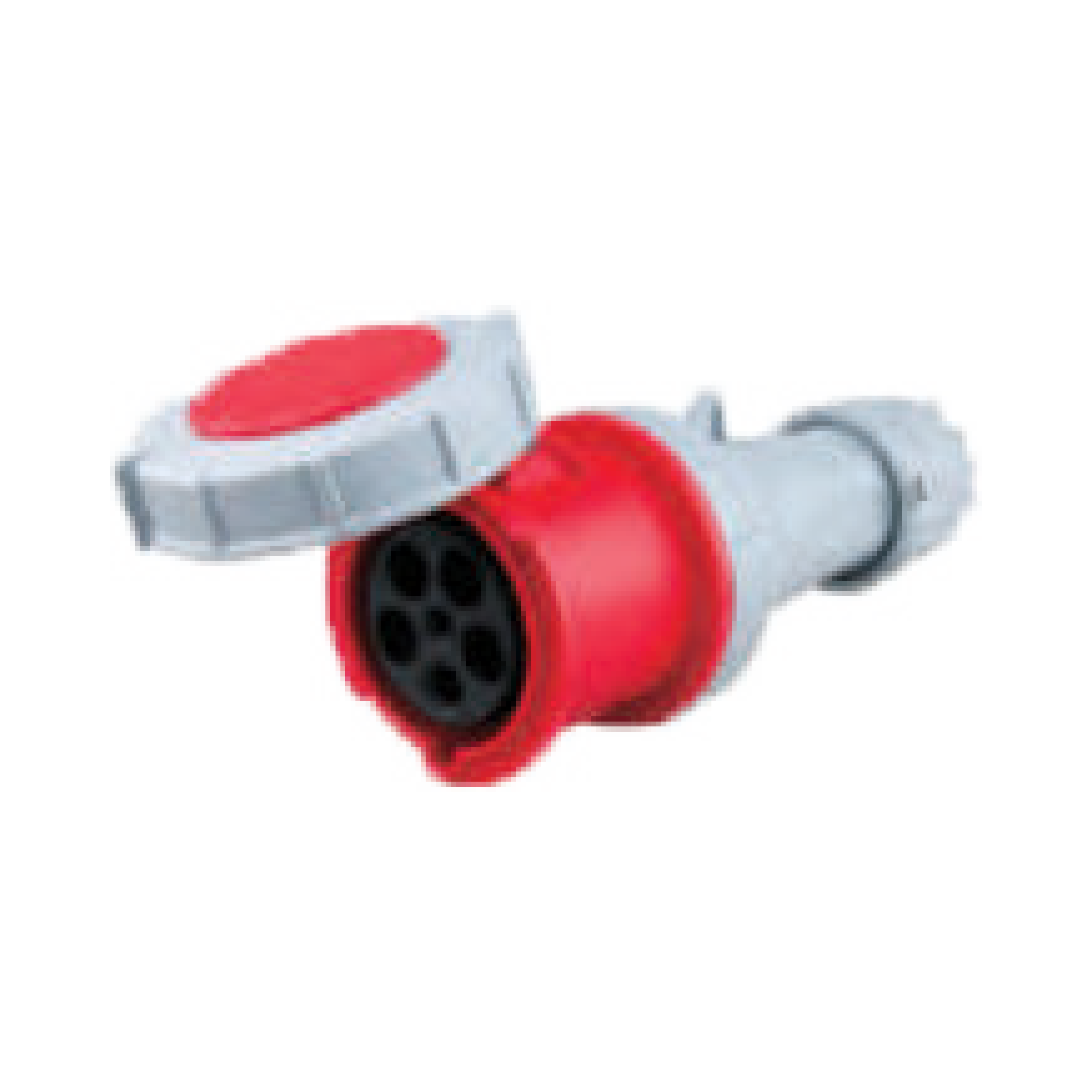

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler
Code KS-2352
Normal current 63A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS-2352
a 114
b 117
c 37
d 270
Cable nominal cross section area 1-2.5mm2

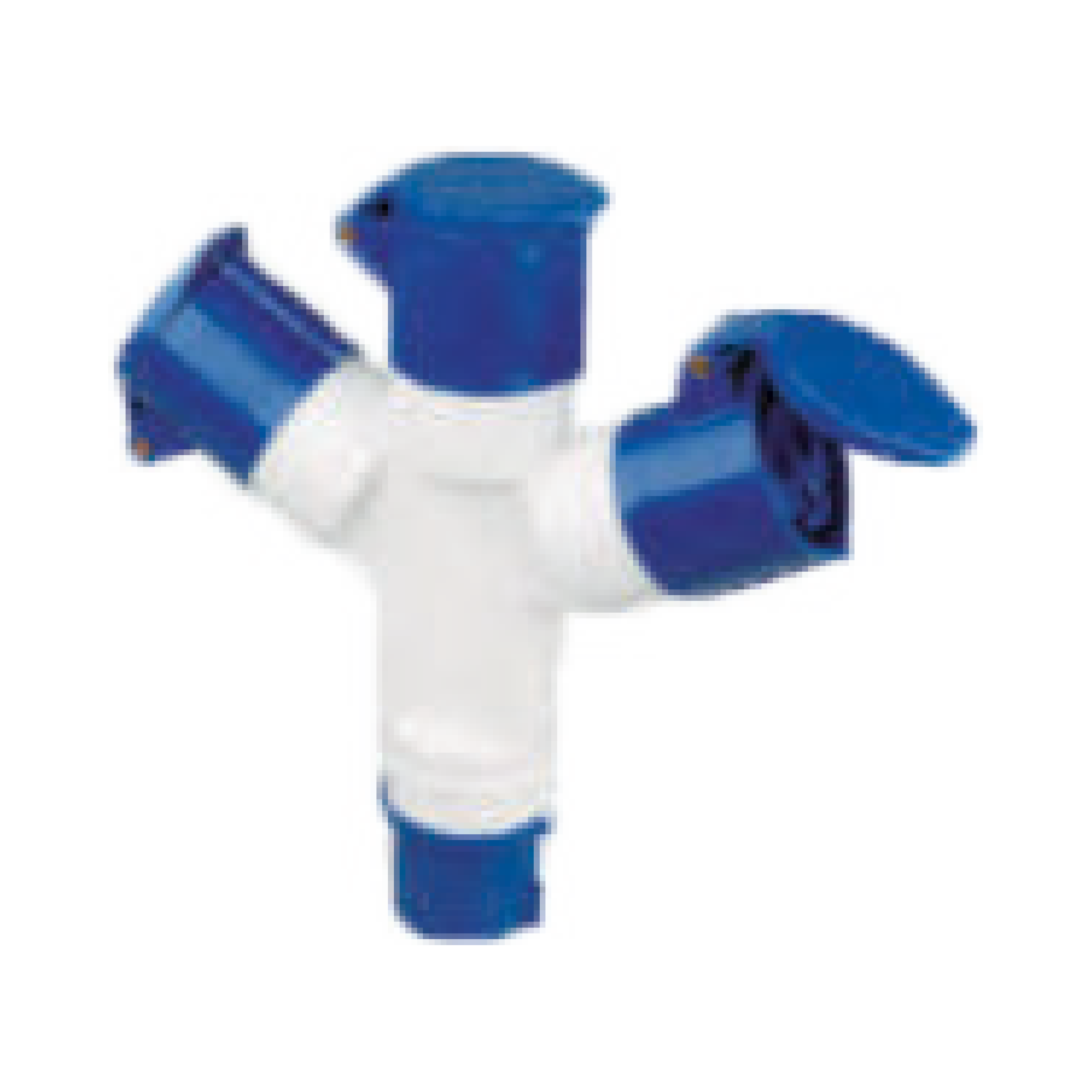

MULTI - FUNCTION PLUG & SOCKET CONNECTOR

Code KS-1013 KS-1023
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-240V~ 220-240V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) KS-2152 KS-2252
a 223 318
b 220 305

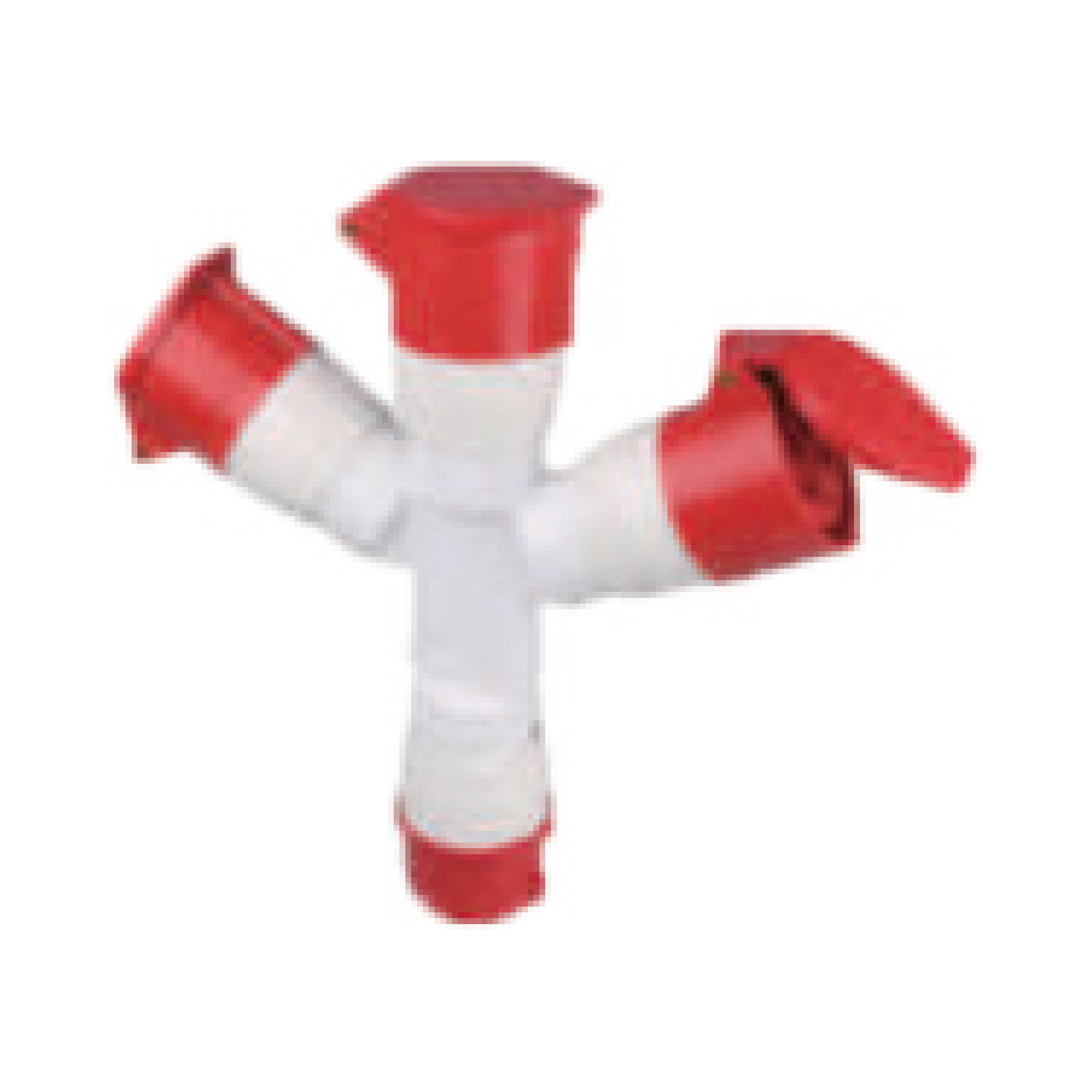

MULTI - FUNCTION PLUG & SOCKET CONNECTOR

Code KS-1015
Normal current 16A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP44
Size (mm) KS-2352
a 305
b 295

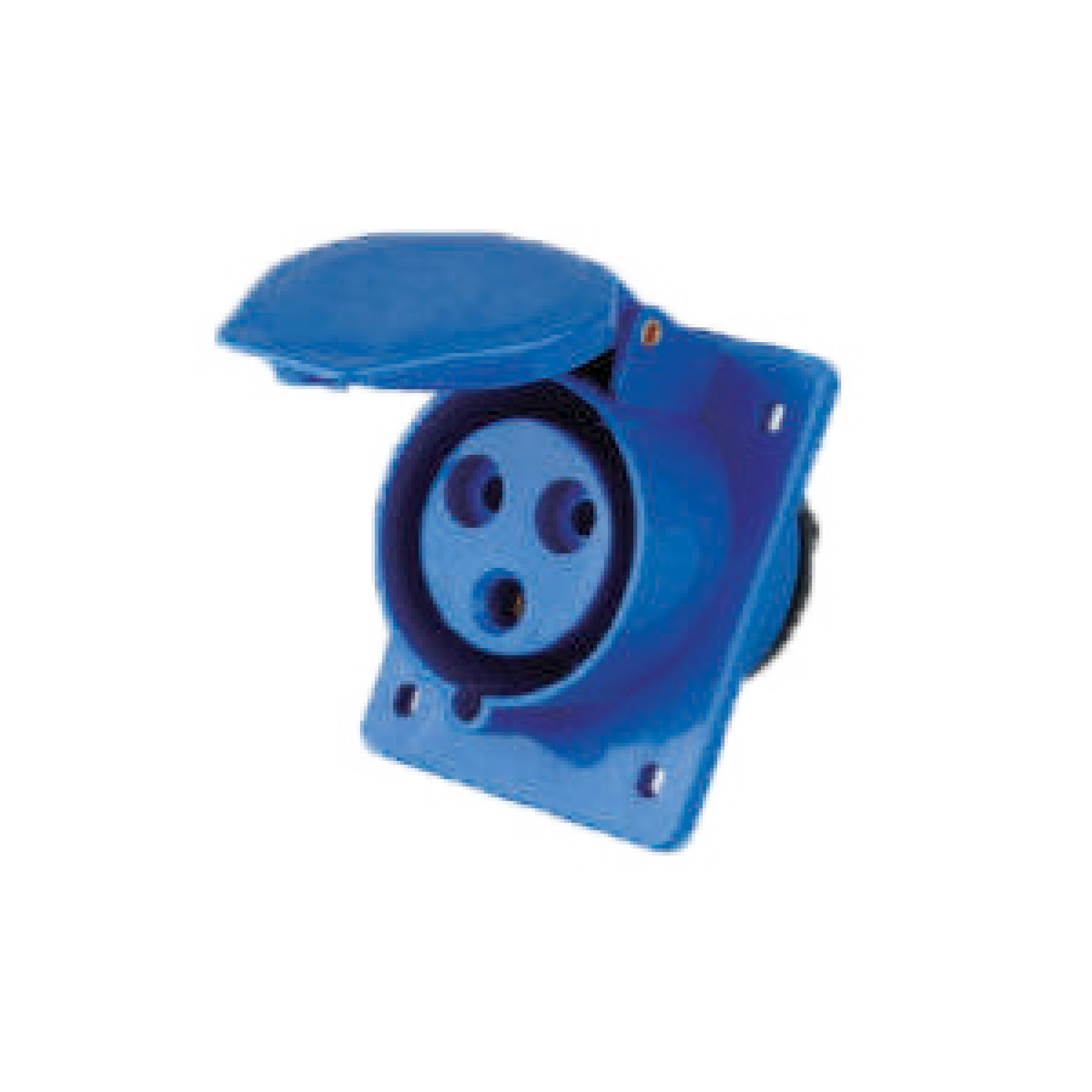

ANGULAR PLUG & SOCKET

Application Socket
Code KS-413
Normal current 16A
Earth Contact Position 6h
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS-413
a 74
b 72
c 45
Cable nominal cross section area 1-2.5mm2

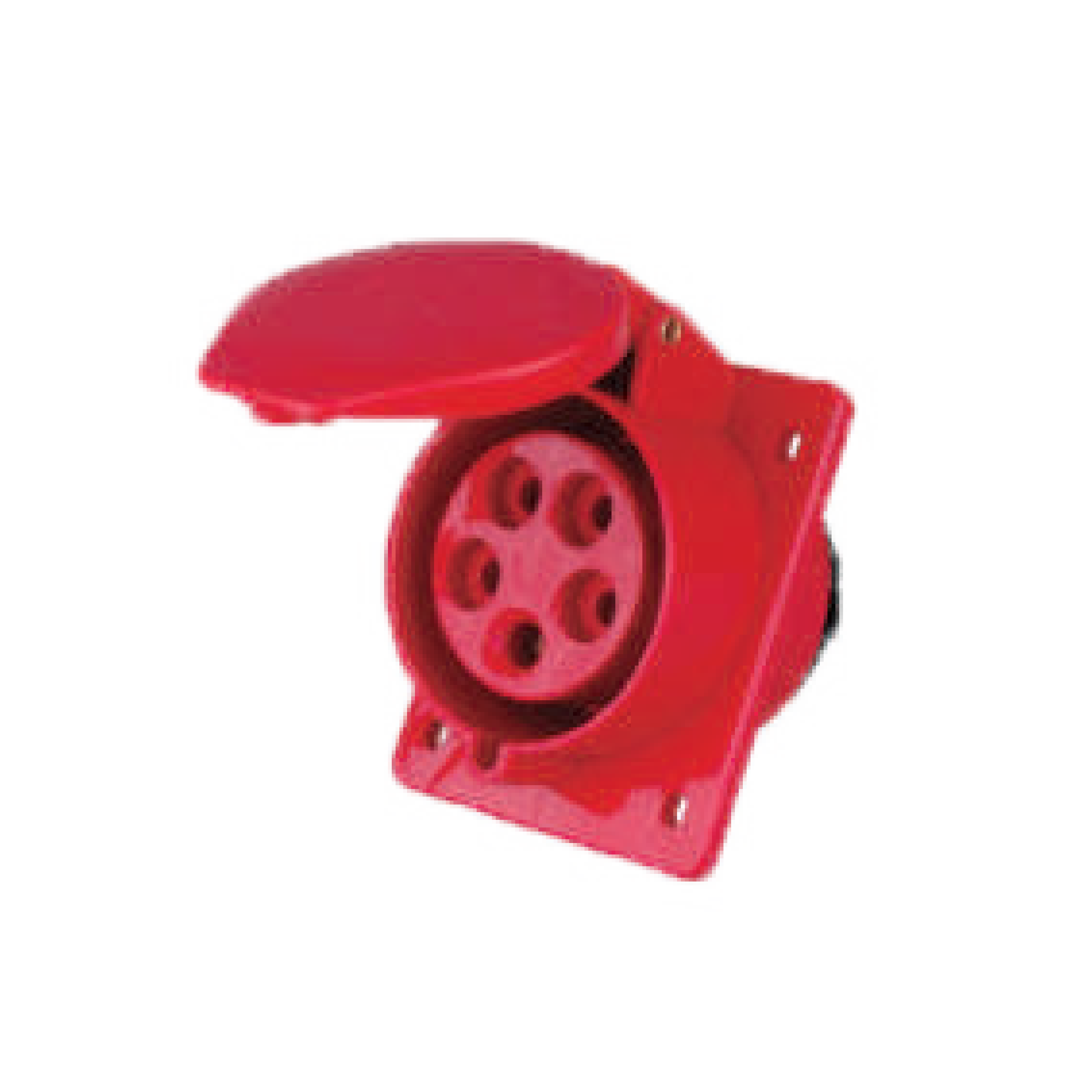

ANGULAR PLUG & SOCKET

Application Socket
Code KS-425
Normal current 32A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP44
Size (mm) / Type KS-425
a 102
b 95
c 51
Cable nominal cross section area 2.5-6mm2

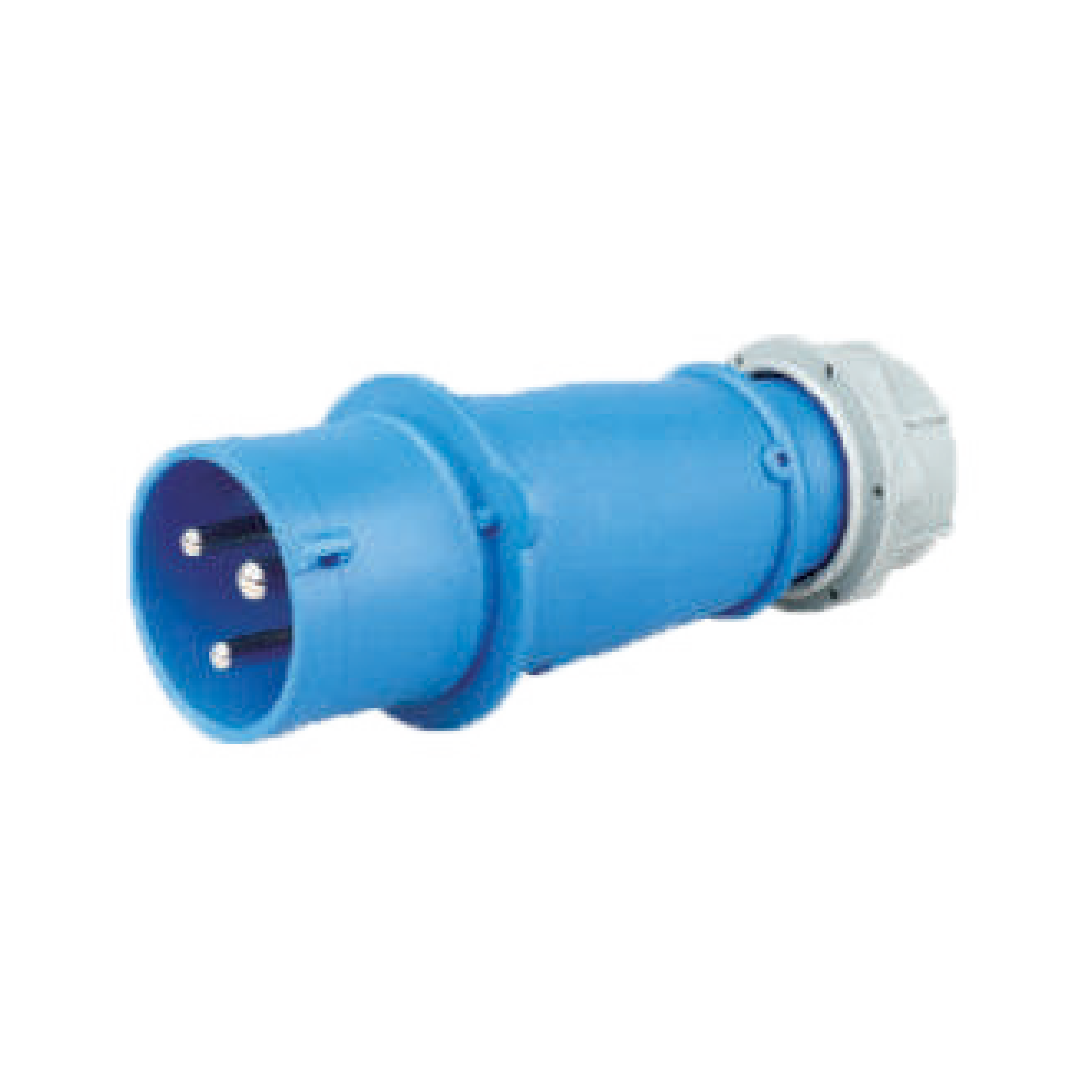

3RD GENERATION INDUSTRIAL PLUG

Application Plug Plug
Code KS-013X KS-015X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) KS-013X KS-015X
a 58 80.7
b 47 63
c 7-15 10-20
d 135 171
e 104 130
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

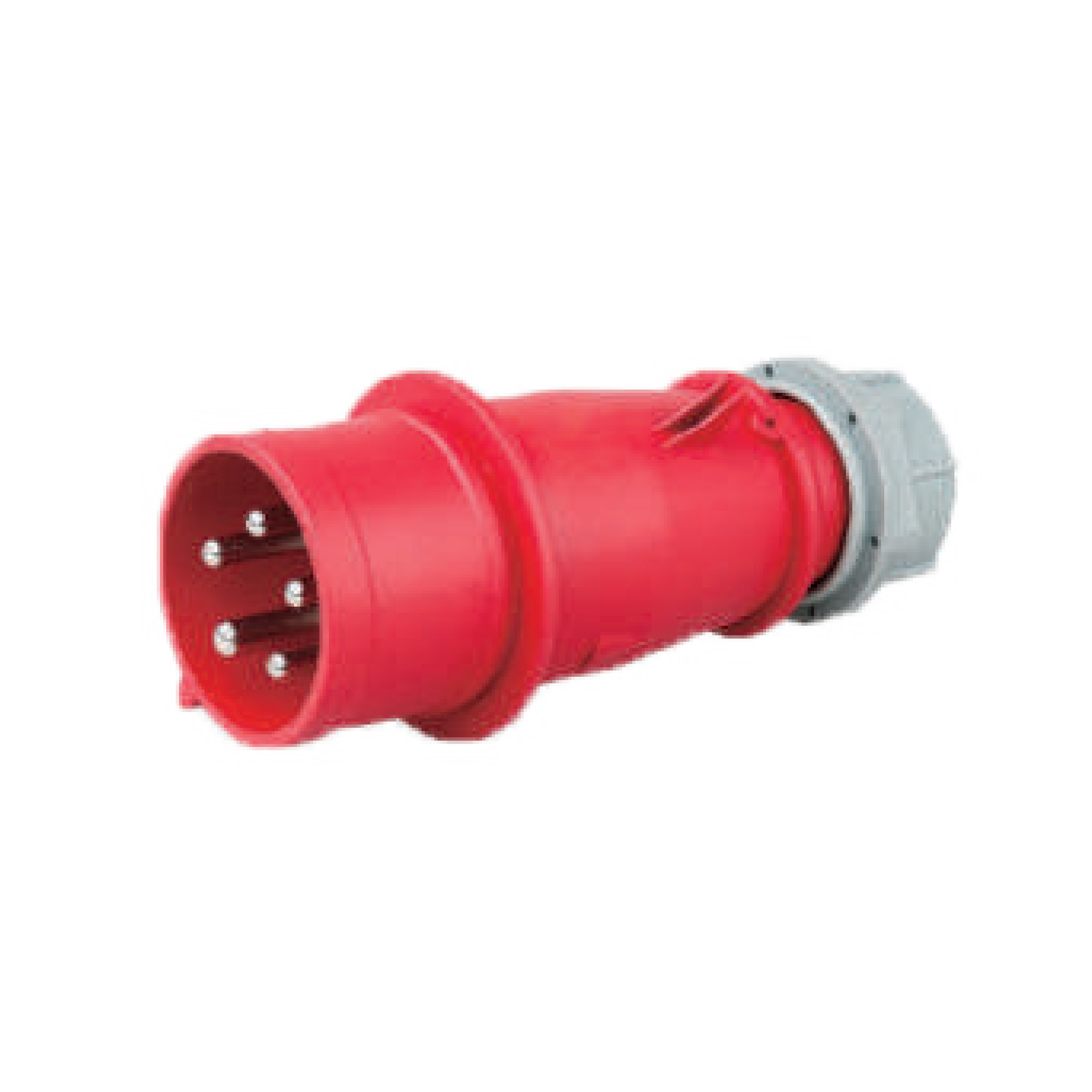

3RD GENERATION INDUSTRIAL PLUG

Application Plug Plug
Code KS-015X KS-025X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) KS-015X KS-025X
a 75 89
b 60 70
c 8-16 12-22
d 145 178
e 112 132
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

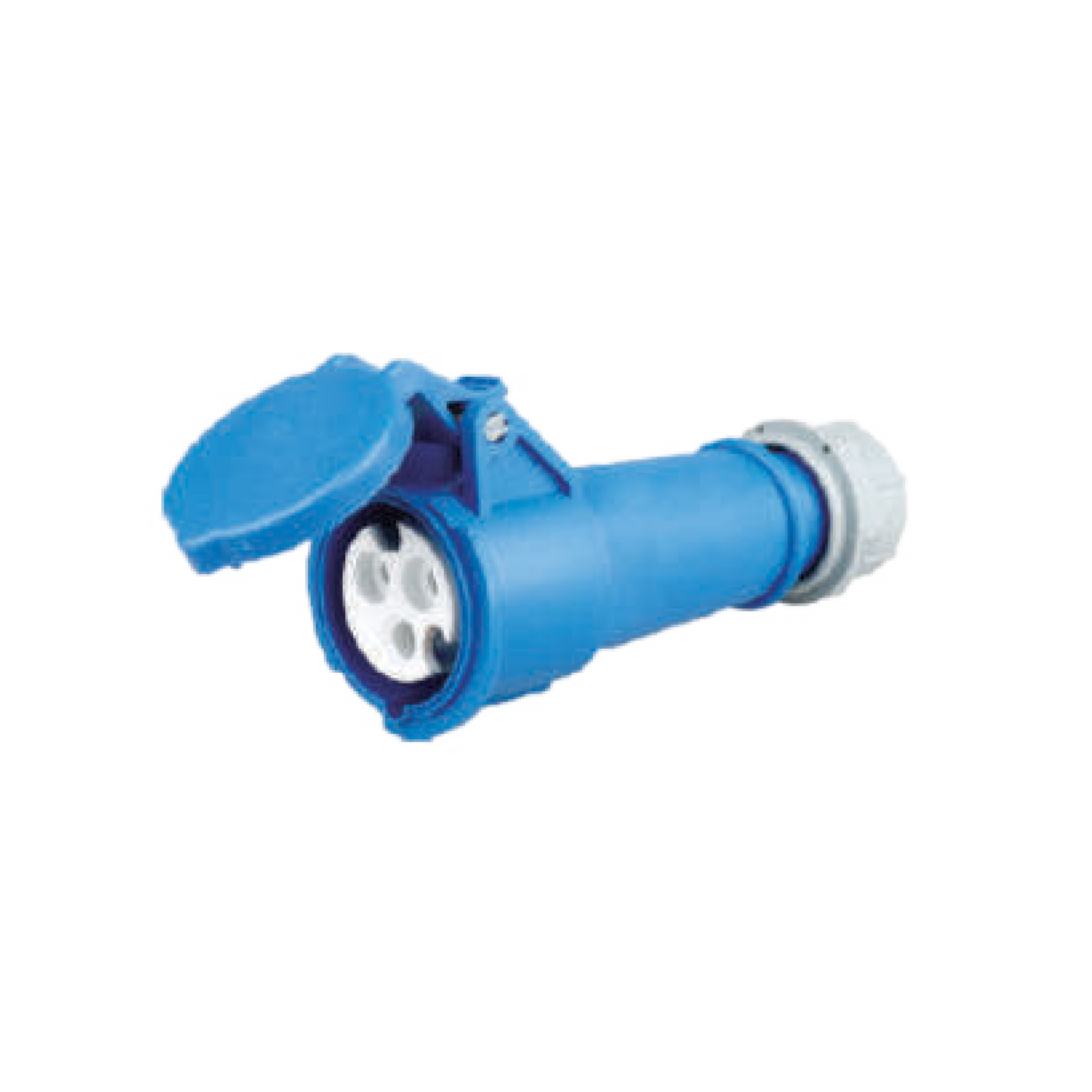

3RD GENERATION INDUSTRIAL STRAIGHT SOCKET

Application Coupler Coupler
Code KS-213X KS-223X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS-213X KS-223X
a 83 102
b 60 82.5
c 155 195
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

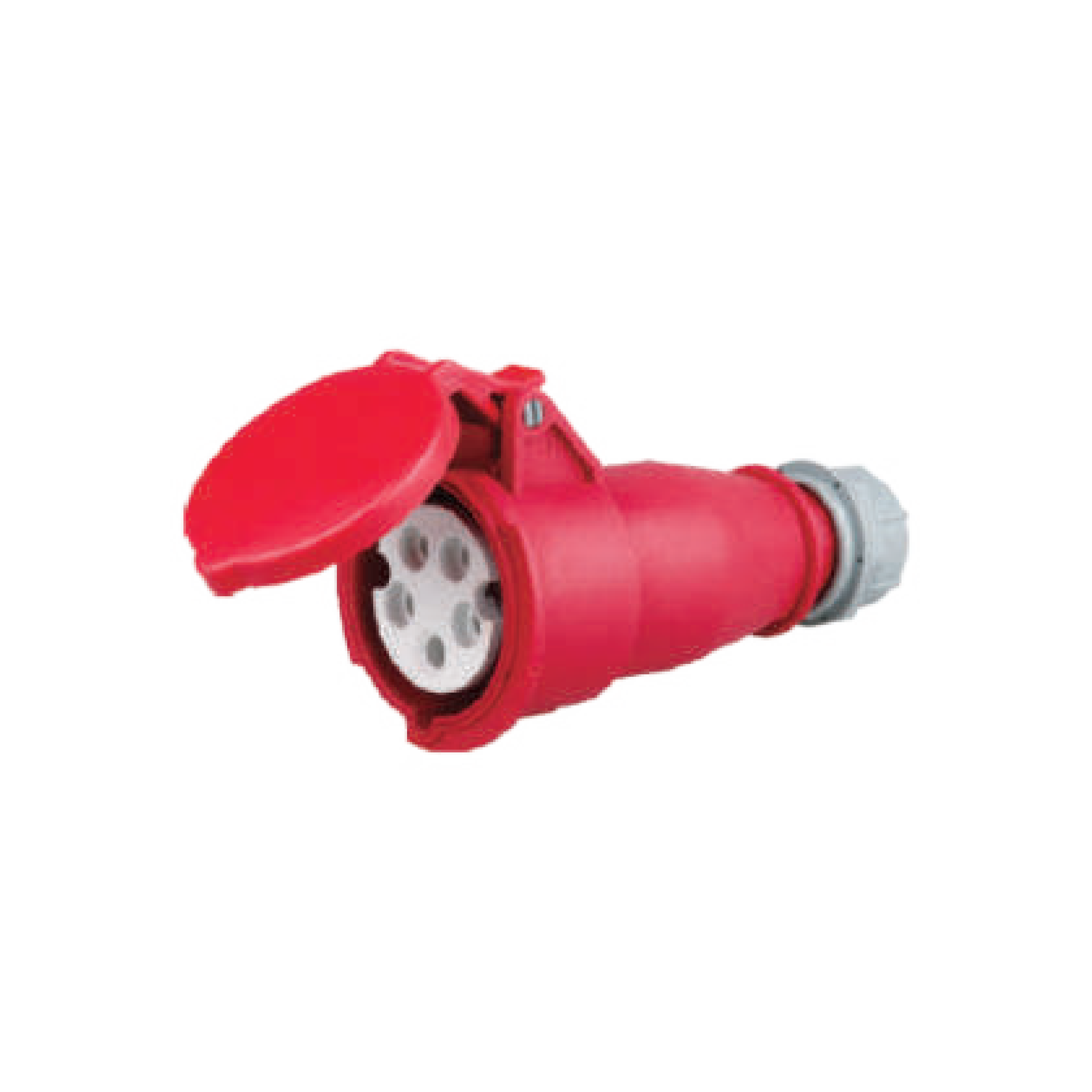

3RD GENERATION INDUSTRIAL STRAIGHT SOCKET

Application Coupler Coupler
Code KS-215X KS-225X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP-44 IP-44
Size (mm) / Type KS-215X KS-225X
a 100 110
b 76 90
c 160 200
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

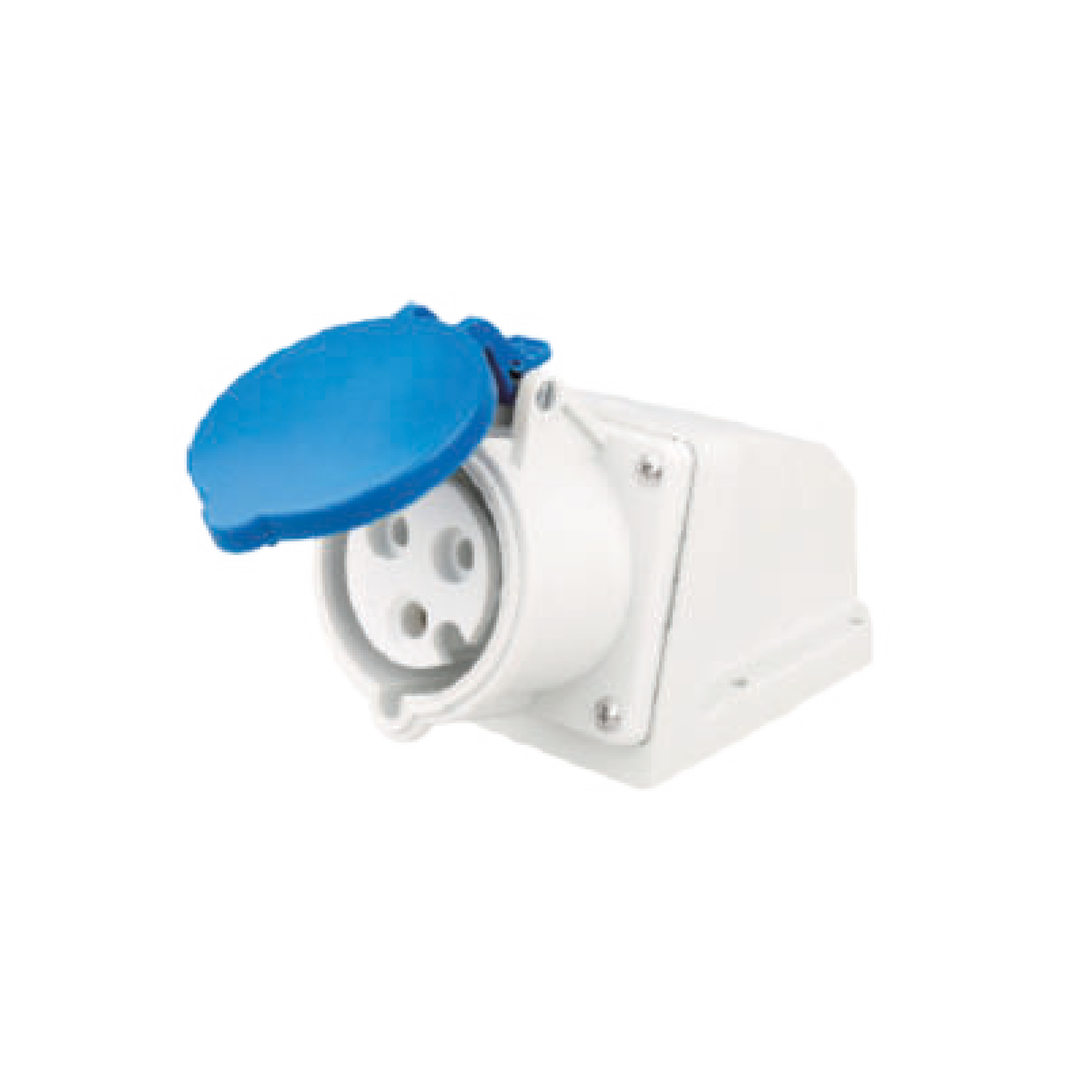

3RD GENERATION INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-113X KS-123X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250v~ 220-250v~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS-113X KS-123X
a 104 114
b 80 80
c 181 192
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

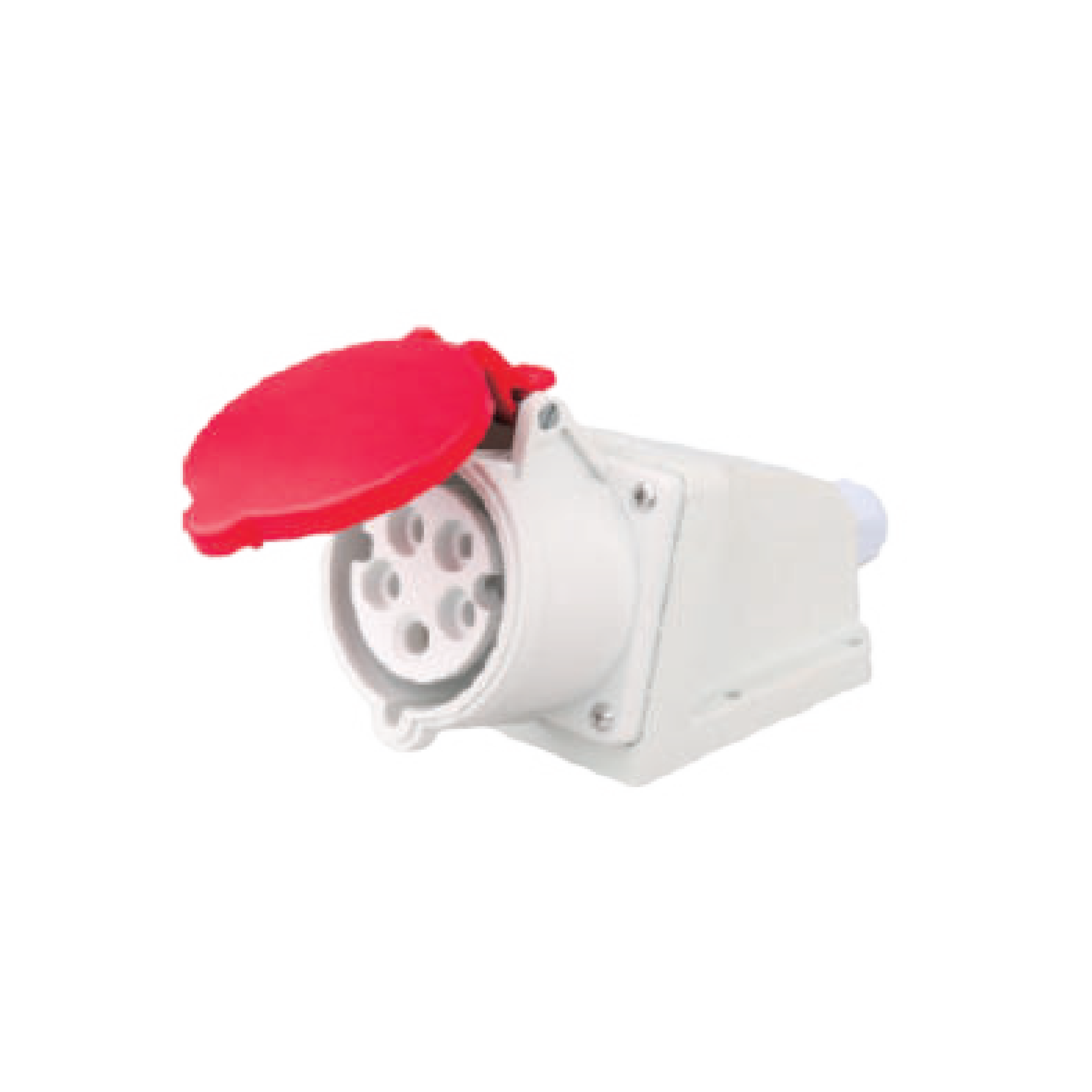

3RD GENERATION INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-115X KS-125X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP-44 IP-44
Size (mm) / Type KS-113X KS-123X
a 104 114
b 80 80
c 181 192
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Go To Top
